Description

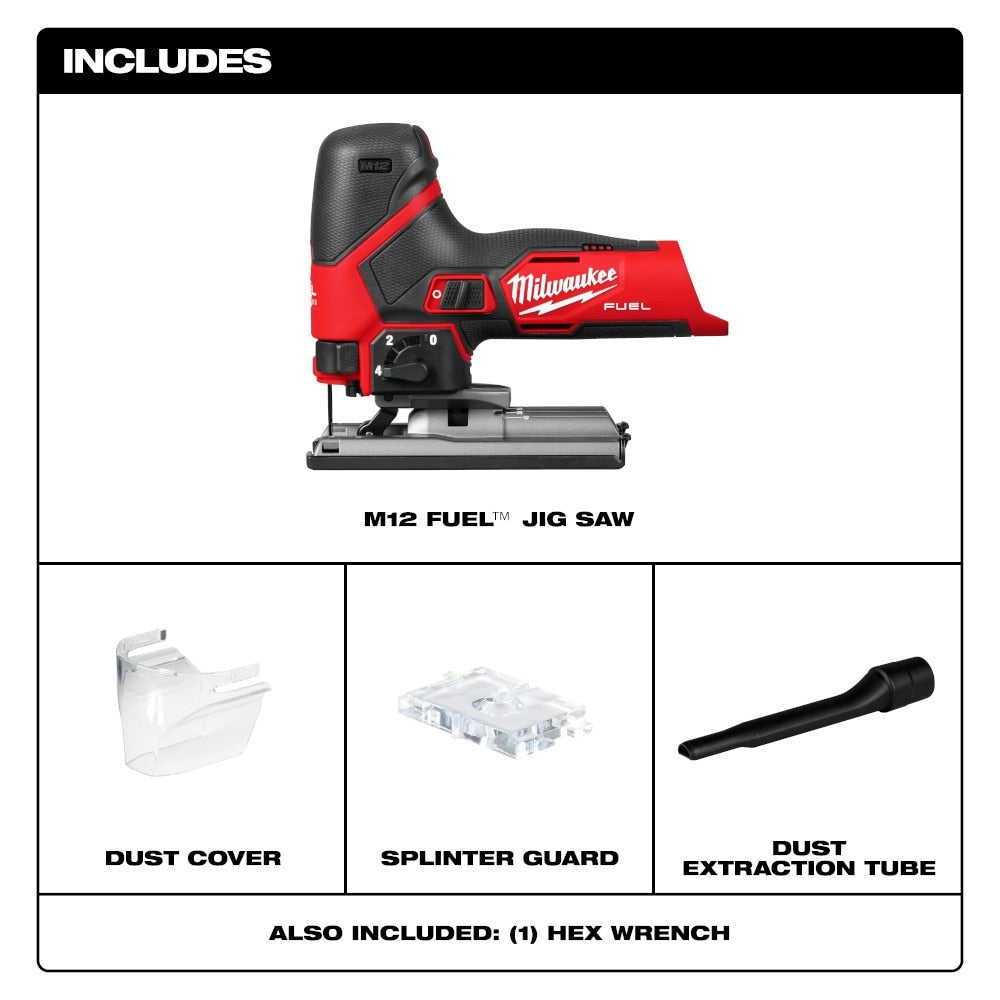

INCLUDES:
• (1) 2545-20 M12 Jig Saw
• (1) Dust Cover
• (1) Splinter Guard
• (1) Vacuum Hose Adapter
• (1) and Hex Wrench
FEATURES:

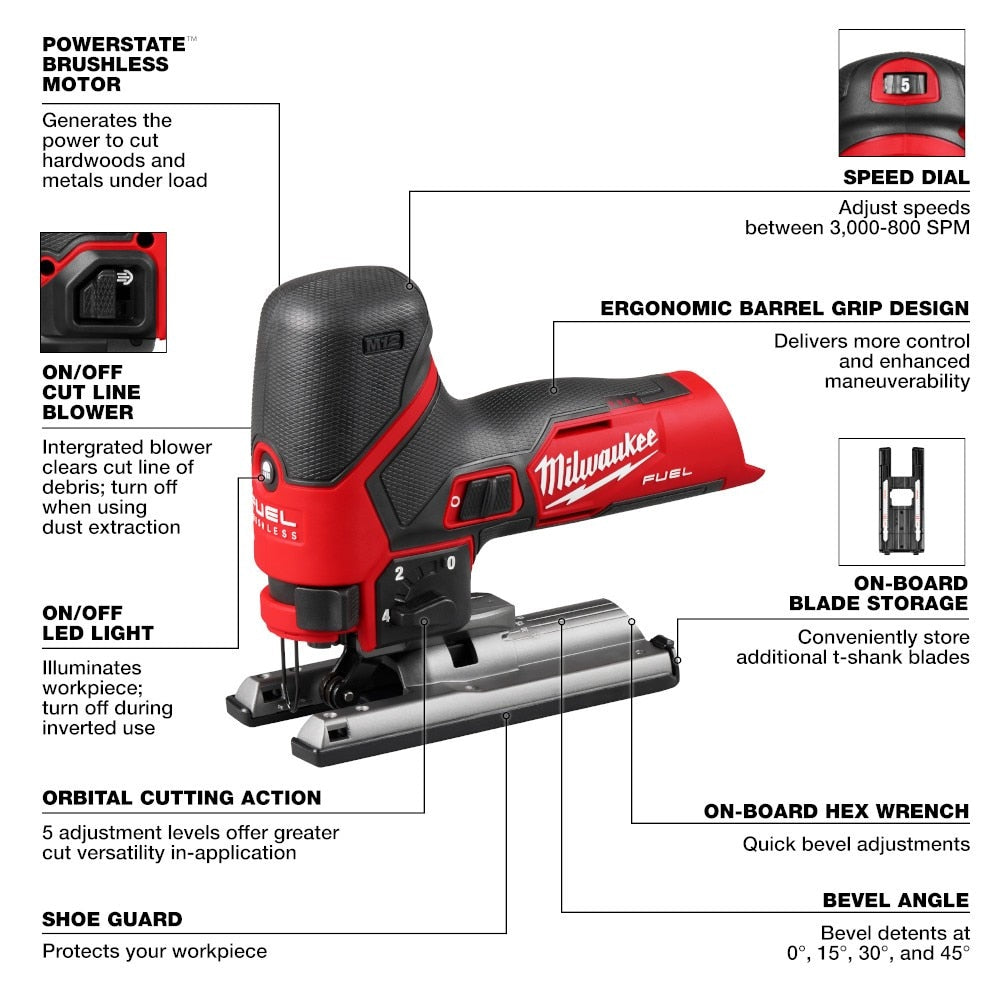

• POWERSTATE Brushless Motor: Generates the power to cut hardwoods and metals under load
• REDLINK PLUS Intelligence: Ensures maximum performance and protects from overloads, heating, and over-discharge
• Ergonomic barrel grip design delivers more control and enhanced maneuverability
• Variable speed dial provides 5 adjustment settings that range from 3000 - 800 SPM
• Orbital action with 5 adjustment levels offers greater cut versatility in application

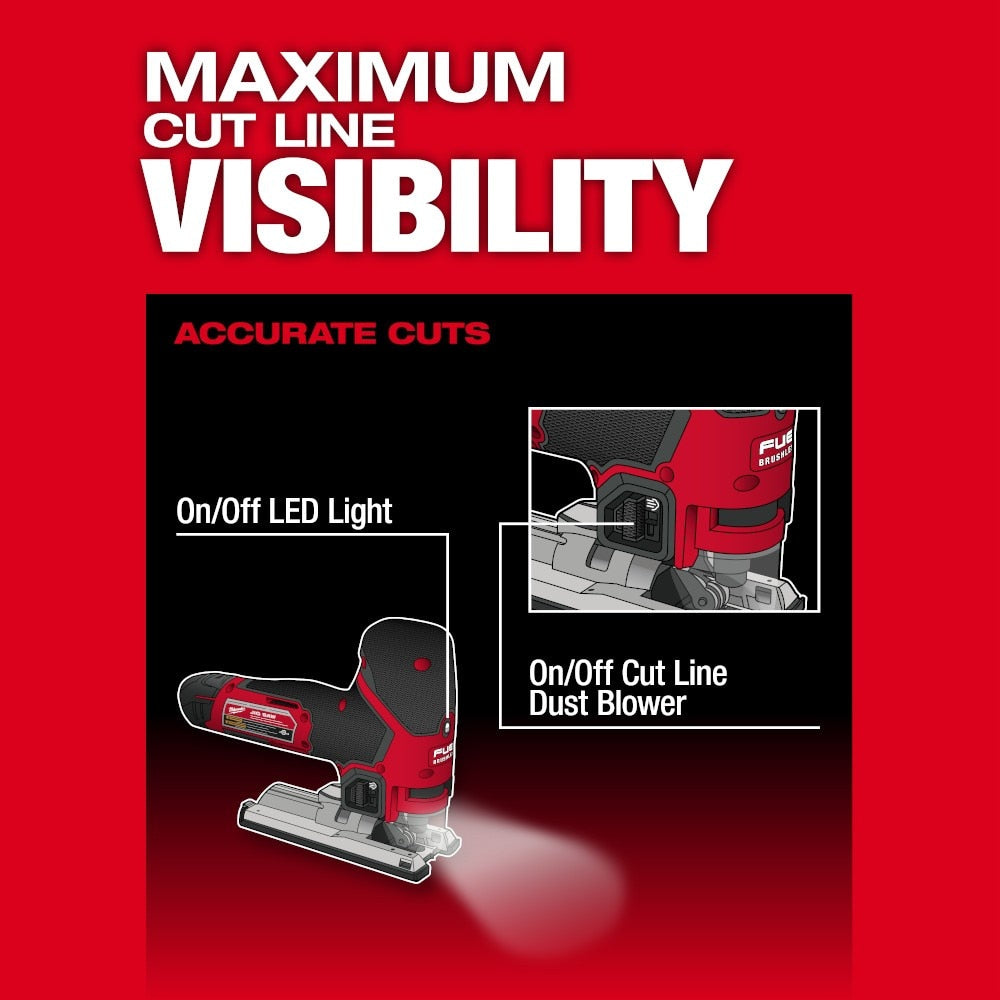

• LED light illuminates the workpiece and allows user to turn off during inverted use
• Integrated blower clears the cut line of debris and allows user to turn off when using dust extraction
• Accepts T-Shank jig saw blades
• On-board blade storage
• Tool-free quick eject blade change
• Durable aluminum base plate with bevel detents at 0°, 15°, 30°, and 45°
• Includes Dust Cover, Splinter Guard, Shoe Cover, Vacuum Shroud
• On-board hex wrench for quick, efficient bevel adjustments
• Compatible with over 125+ tools on the M12 System.

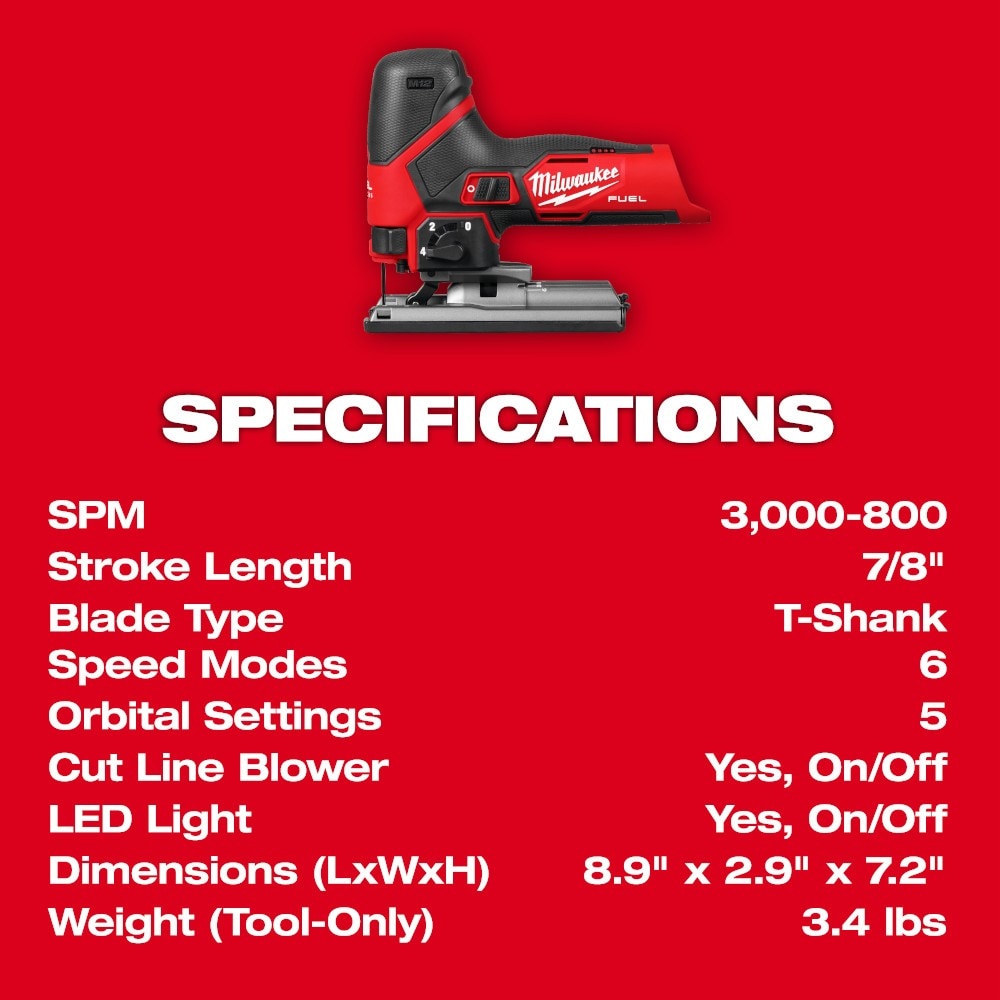

SPECIFICATIONS:
• Electric - Cordless
• Saw Design - Barrel Grip
• Blade Type - Jig Saw T-Shank
• Stroke Length (in) - 0.875
• Maximum Strokes per Minute - 3000
• Housing Material - Glass-Filled Nylon
• Color / Finish - Black, Red
• Height (in) - 7.2
• Length (in) - 8.9
• Width (in) - 2.9
• Weight - Excluding Battery (lbs) - 3.4
• Variable Speed - Yes
• Electronic Speed Control - Yes
• Lock-on Switch - Yes
• Adjustable Shoe - Yes
• Bevel Capacity (°) - 90
• Tool-Less Bevel Adjustment - No
• Bevel Adjustment Wrench Included - Yes, Stored on Tool
• Scrolling Action - Yes
• Orbital Action - Yes
• Number of Orbital Action Settings - 5
• Dust Blower - Yes
• Tool-Less Blade Changing - Yes
• Quick Change Blade System - Yes
• Integrated Work Light - Yes
• Integrated Laser Guide - No
• Number of Batteries Required - 1
• Number of Batteries Included - 0
• Battery Voltage (V) - 12
• Battery Composition - Lithium-Ion (Li-ion)
• Charger Included - No
• Shoe Cover Included - Yes
• Main Handle Type - Barrel Grip
• Integrated Blade Storage - Yes
• Blades Included - No
• No Case Included
• Manufacturer Warranty - 5 Year
• UL Listed - Yes

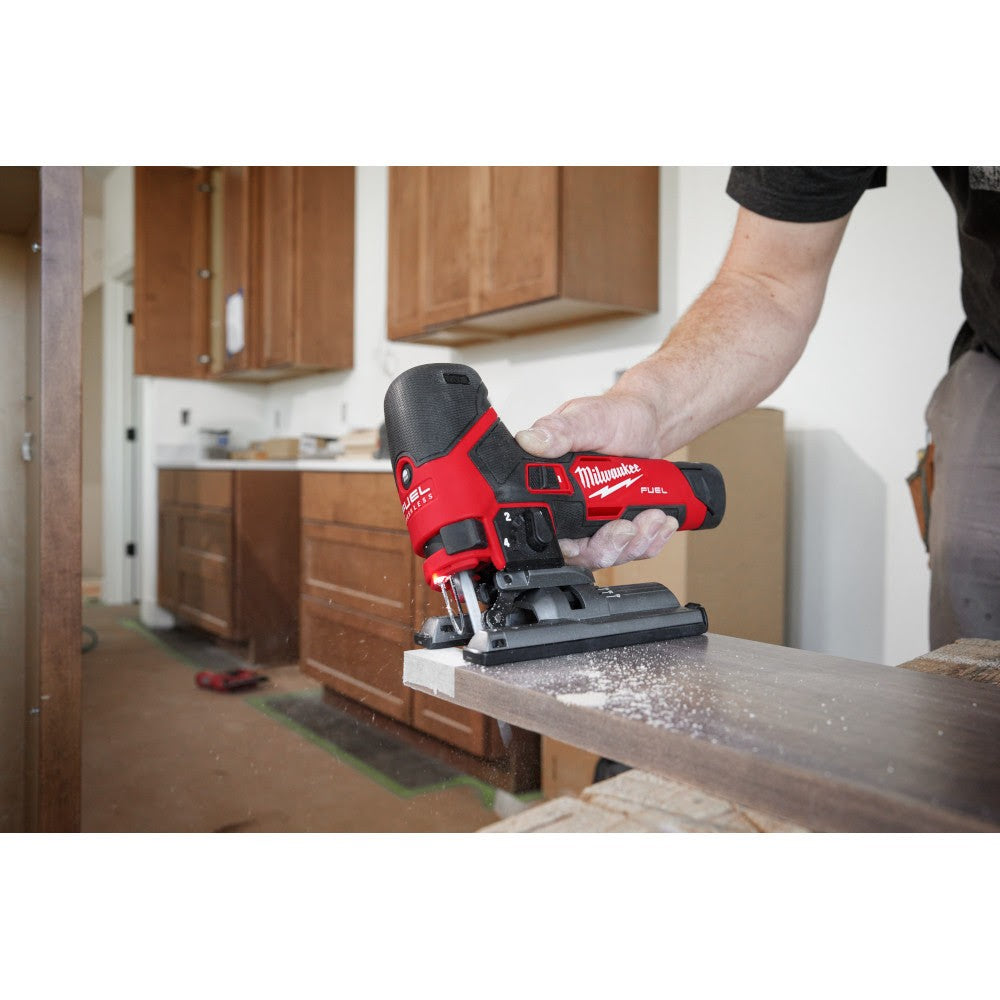

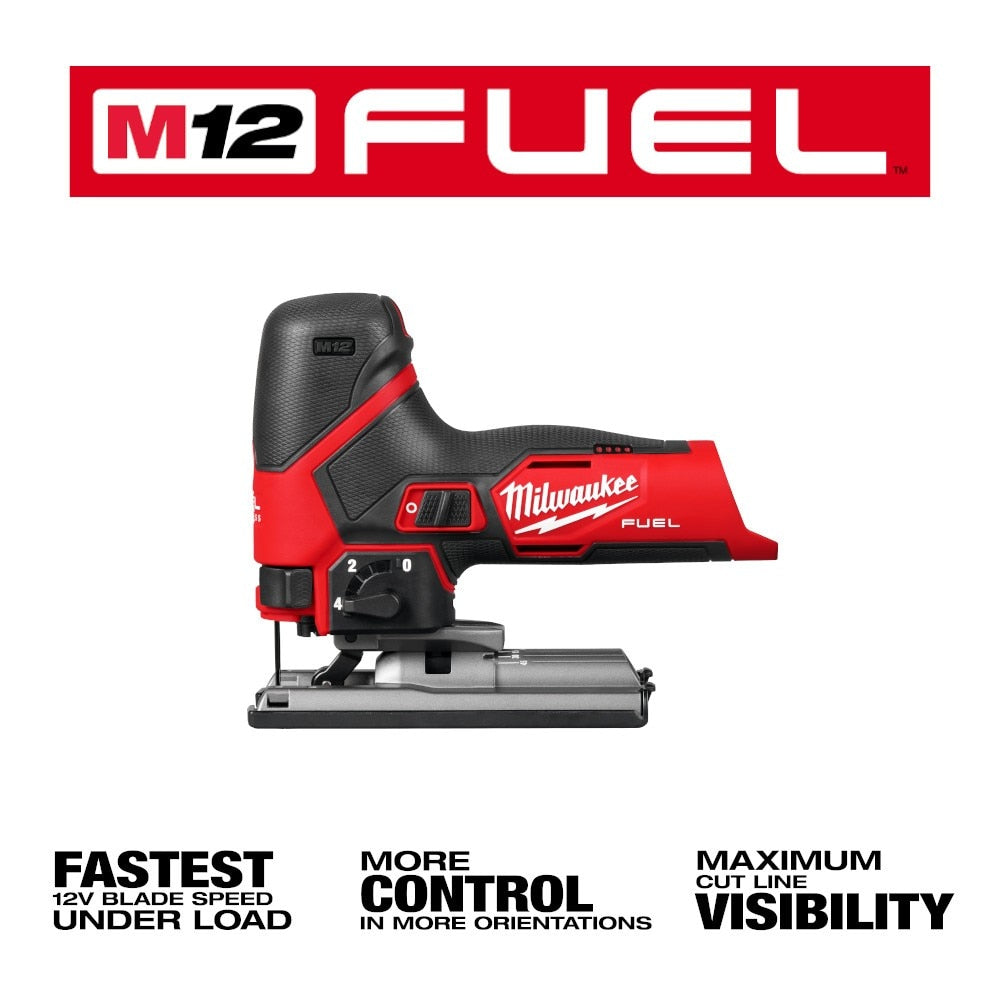

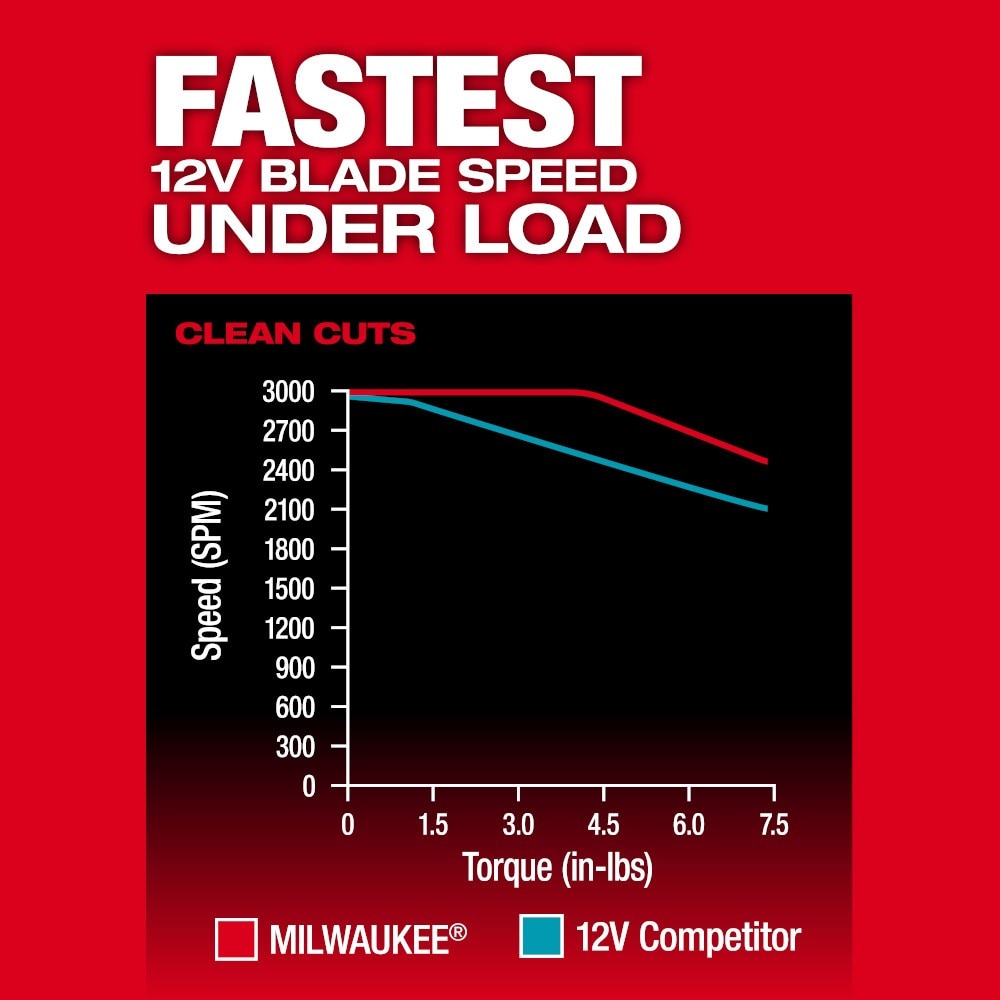

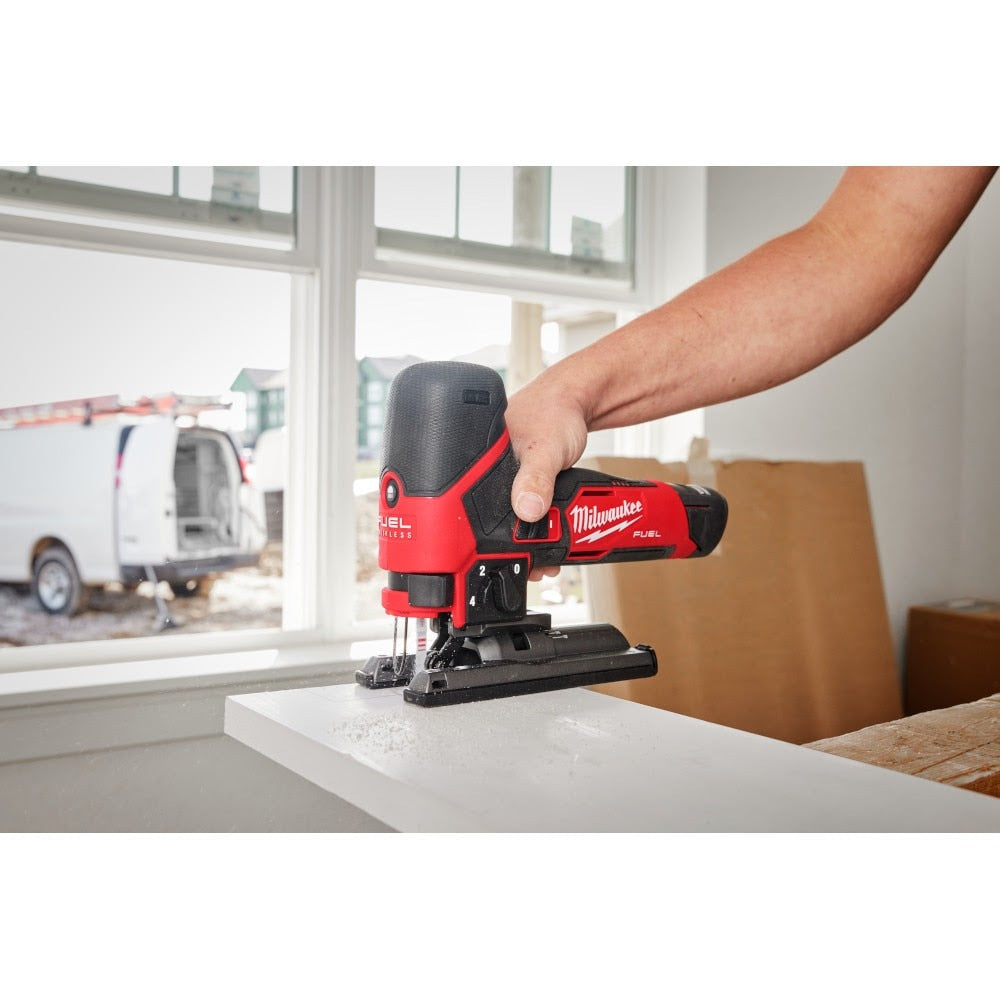

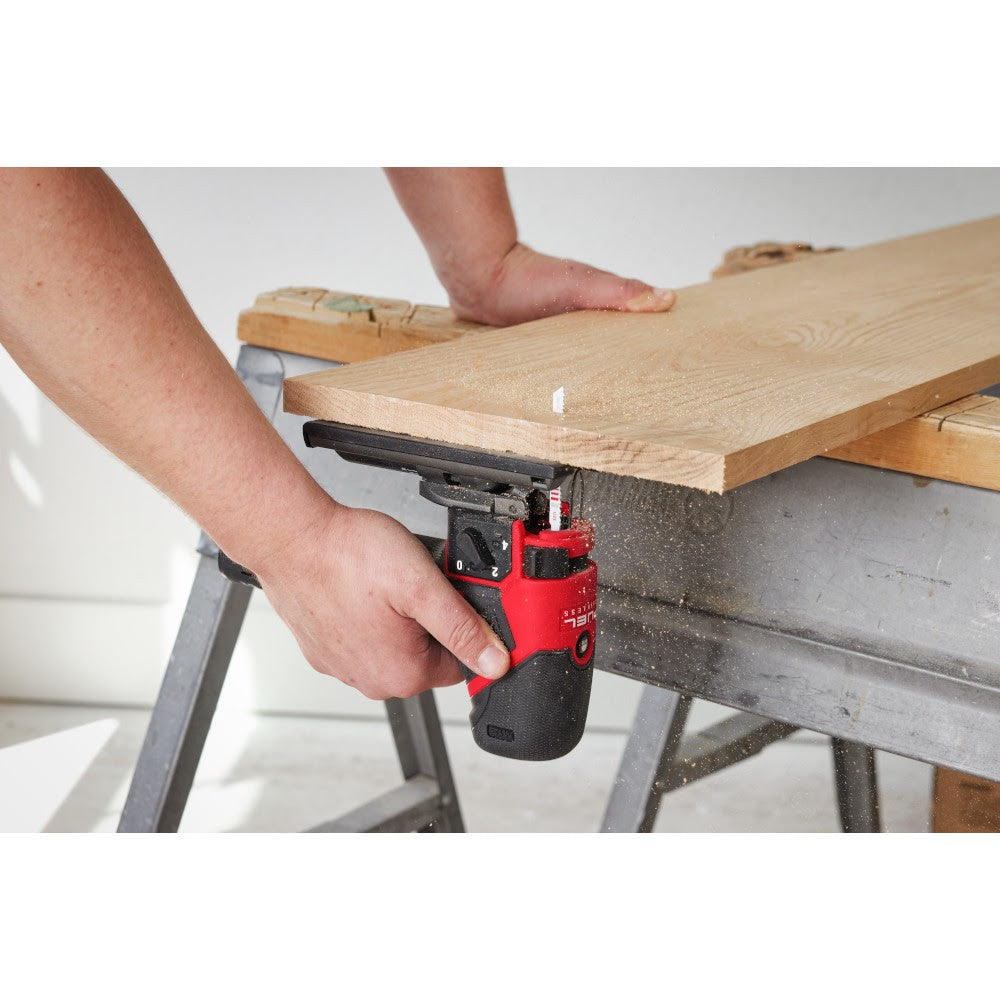

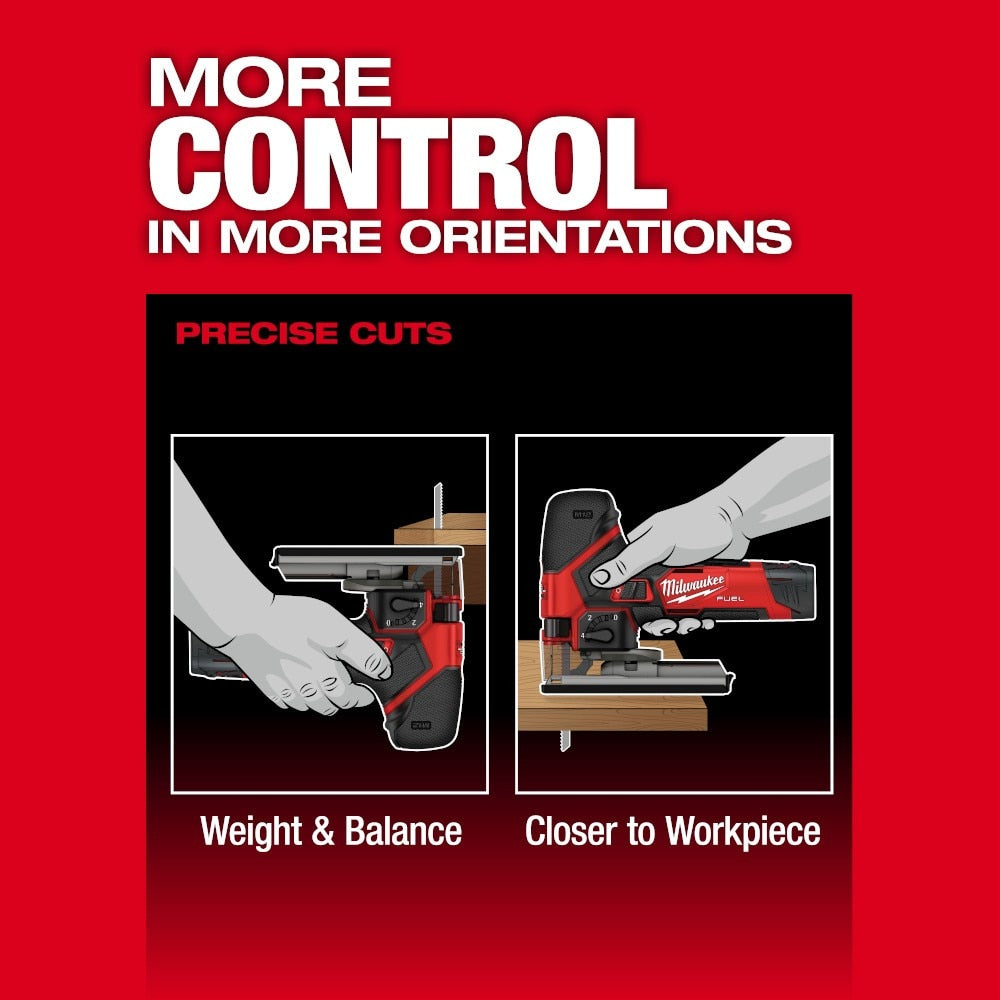

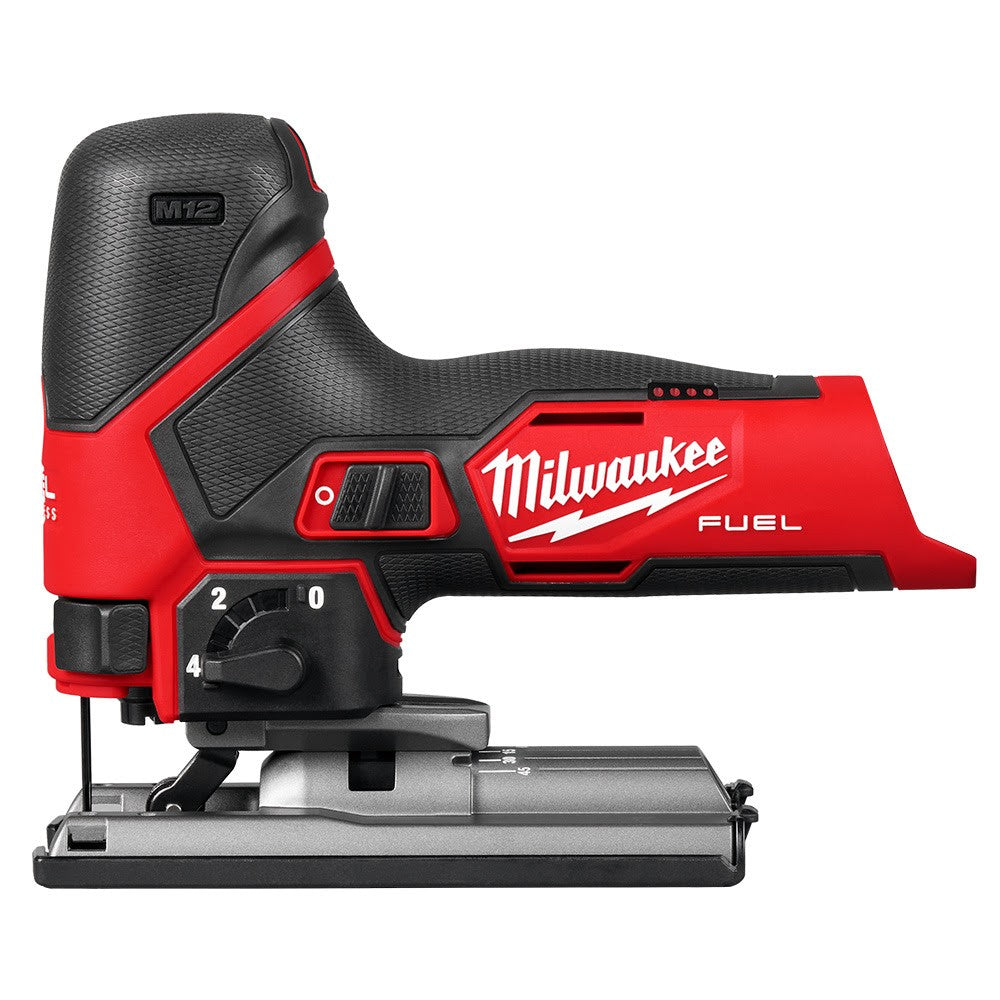

Designed for the professional carpenter and remodeler, the MILWAUKEE M12 FUEL Jig Saw is optimized for power and precision on the jobsite. The M12 FUEL Jig Saw delivers the Fastest 12V Blade Speed Under Load, More Control in More Orientations, and Maximum Cut Line Visibility. The POWERSTATE Brushless Motor and REDLINK PLUS intelligence delivers 3000 strokes per minute at a 7/8" stroke for clean, controlled cuts in a wide variety of finish materials. The compact size, low vibration, and ergonomic barrel-grip design provide more control across standard and inverted orientations of usage. The saw is equipped with an on/off LED light and an on/off dust blower to optimize cut line visibility for the application at hand. The M12 FUEL Jig Saw features orbital action with 5 adjustment levels, variable speed dial, blade storage, tool-less blade change, and a durable aluminum base plate with bevel detents, and carries our industry-leading 5-year limited power tool warranty.
