Milwaukee 2788-22HD M18 FUEL 1-1/2" Lineman Magnetic Drill HIGH DEMAND Kit

Sale price$ 2,729.00 Regular price$ 4,161.00

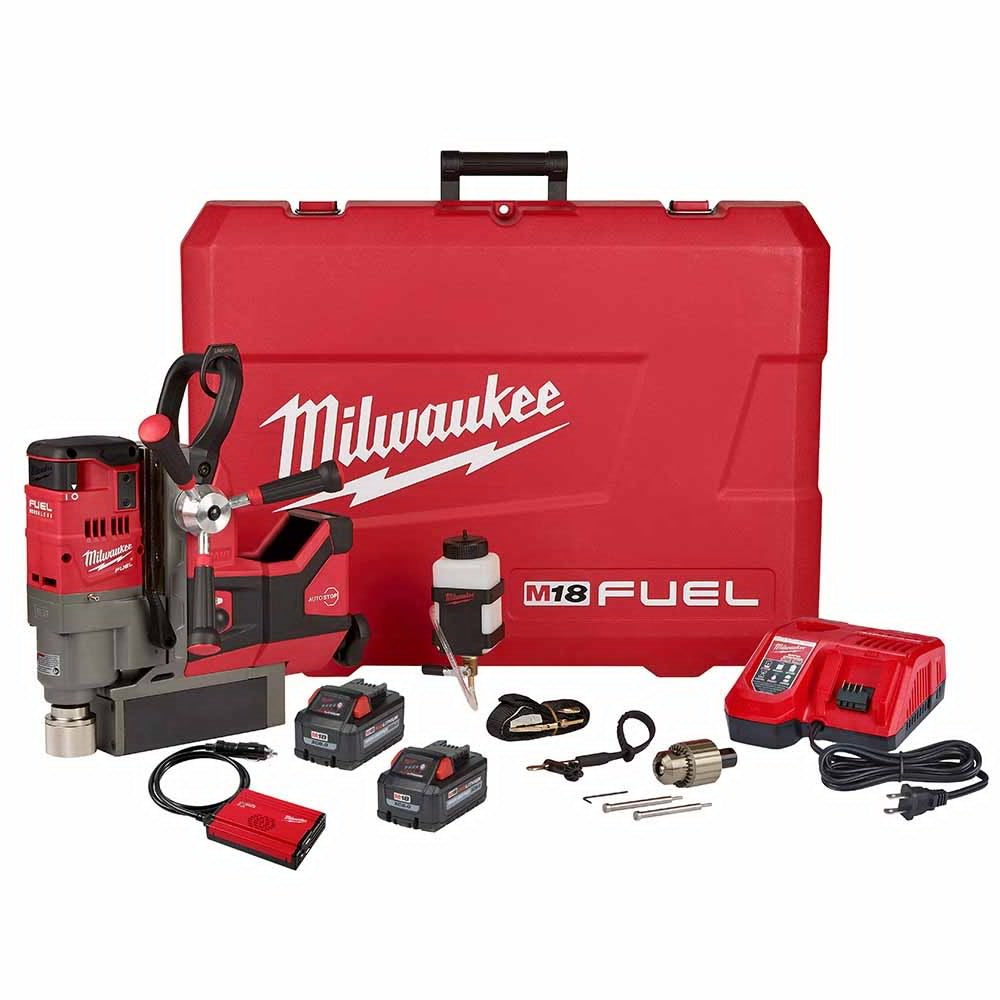

• (1) M18™ 1-1/2" Lineman magnetic rrill kit (2788-22)
• (2) M18™ REDLITHIUM™ HIGH OUTPUT™ XC8.0 Battery packs (48-11-1880)
• (1)M18™ & M12™ Charger
• (1) 150W DC Inverter
• (1) 3/4" Weldon to 1/2" Chuck adapter
• (1) Chuck key
• (1) Magnetic lubrication tank
• (1) Safety strap
• (2) 1" Retractable pilot pin
• (1) Carrying case

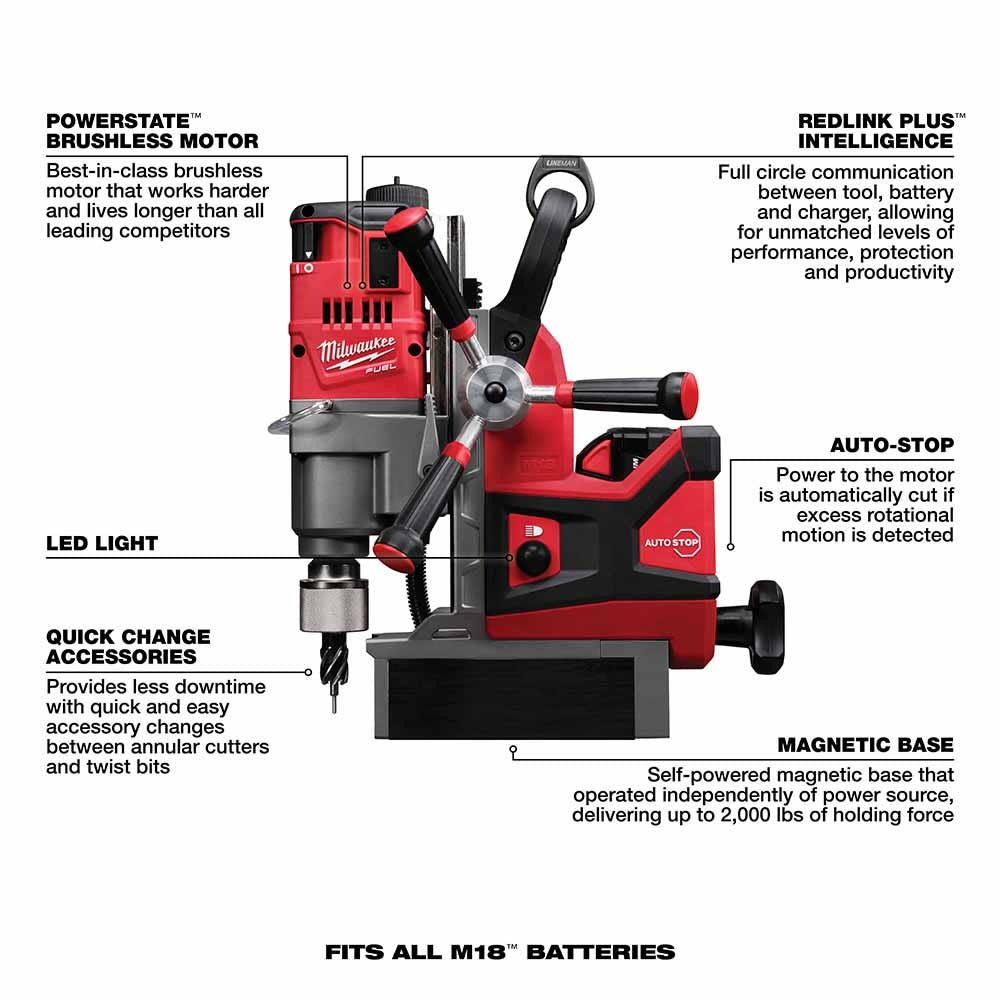

• POWERSTATE™ Brushless Motor: Delivers maximum power and provides up to 2x longer motor life.
• REDLINK PLUS™ Intelligence Provides optimized performance and overload protection using total system communication between tool, battery and charger.
• REDLITHIUM™ XC5.0 Battery Pack: Provides superior pack construction, more work per charge and more work over the life of the pack than competitive batteries.
• Self-Powered Magnet Base Operates Independently of Power Source and Delivers up to 2,000 lbs. of Holding Force

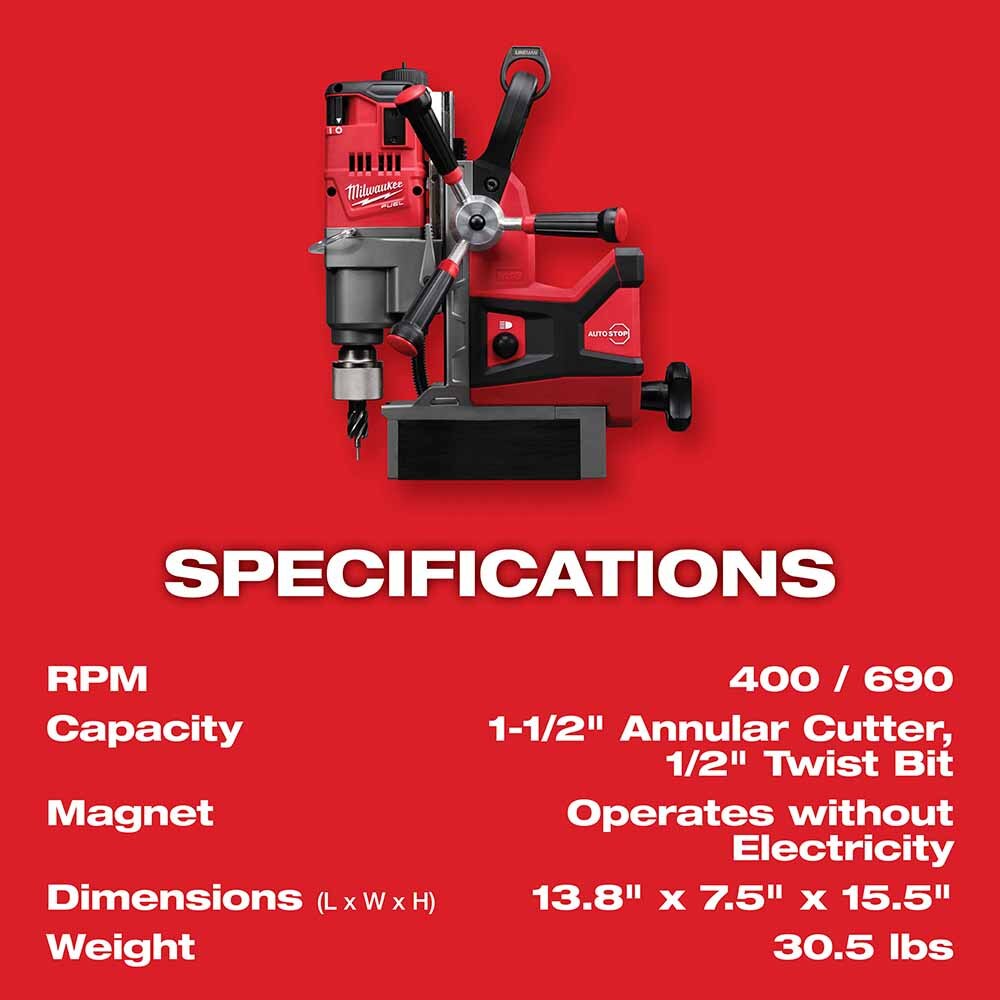

• 1-1/2" Annular Cutter Capacity 1/2" Twist Bit Capacity

• 2 Speed Gear Box: 400/690 RPM
• Stroke Length: 5-3/4"
• Motor Head Adjustment: 5-1/8"
• Voltage: 18V
• Length: 13-3/4"
• Tool Warranty: 5 Years
• Width: 7-1/2"
• Battery System: M18
• Weight: 29.5 lbs
• Height: 15-1/2"
• Power Source: Cordless

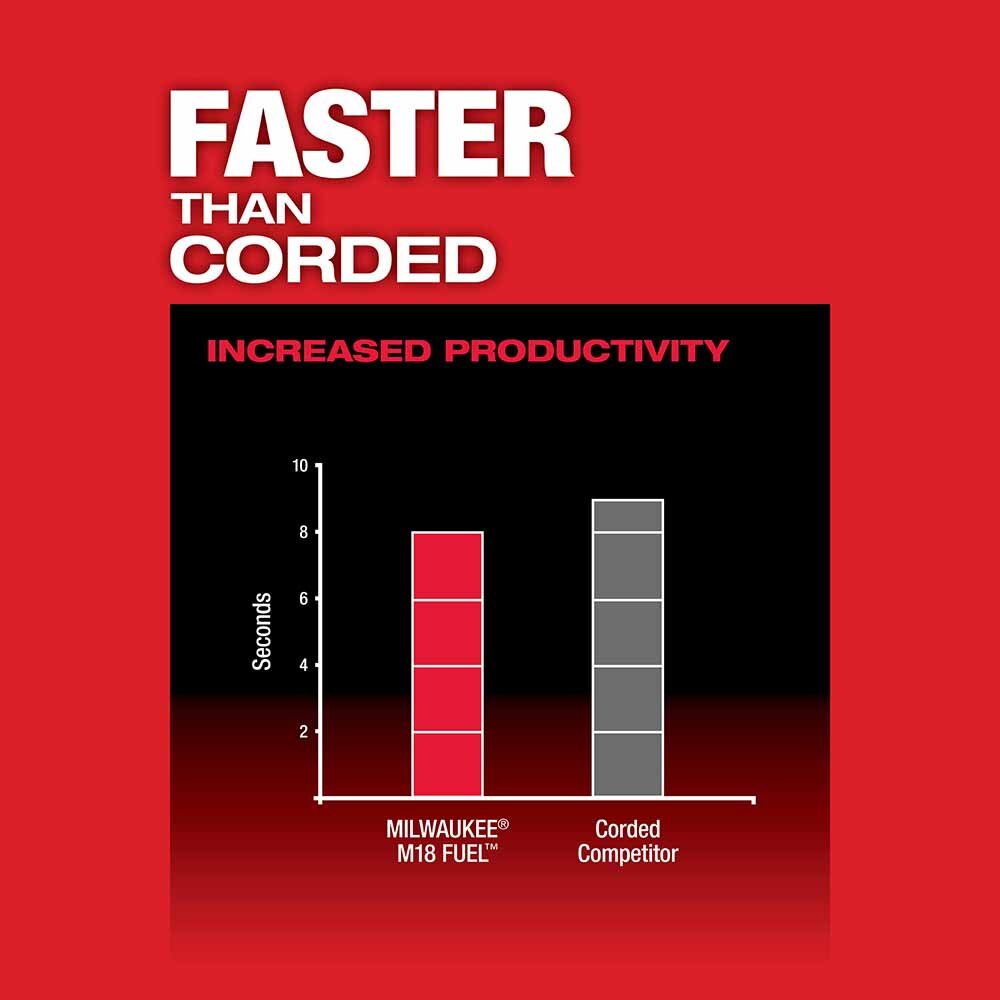

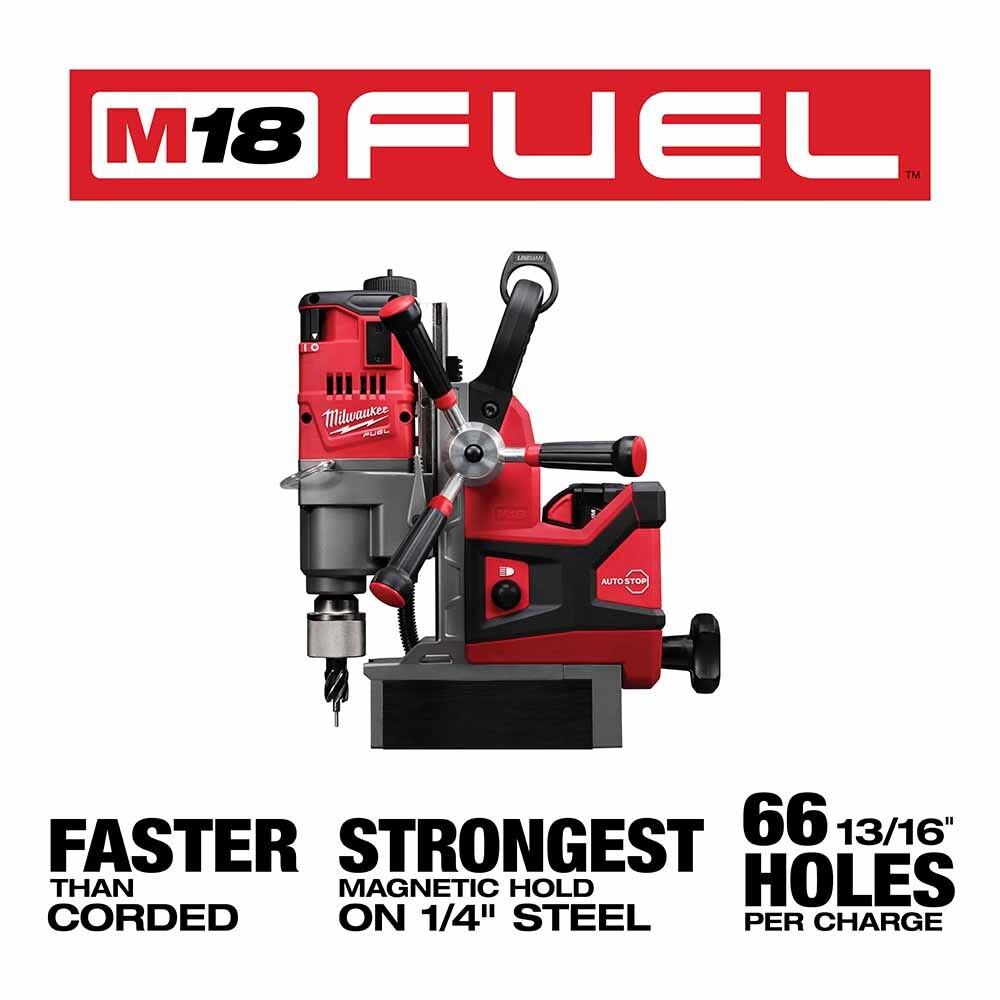

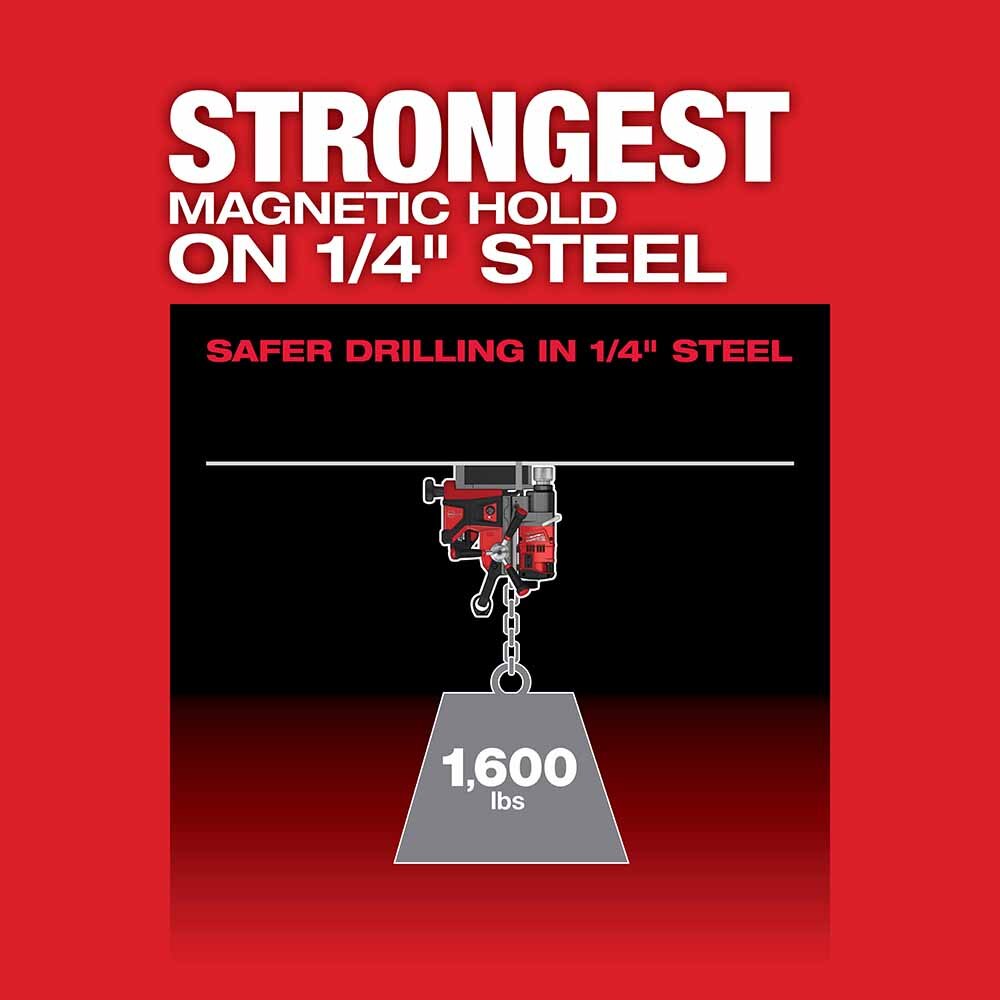

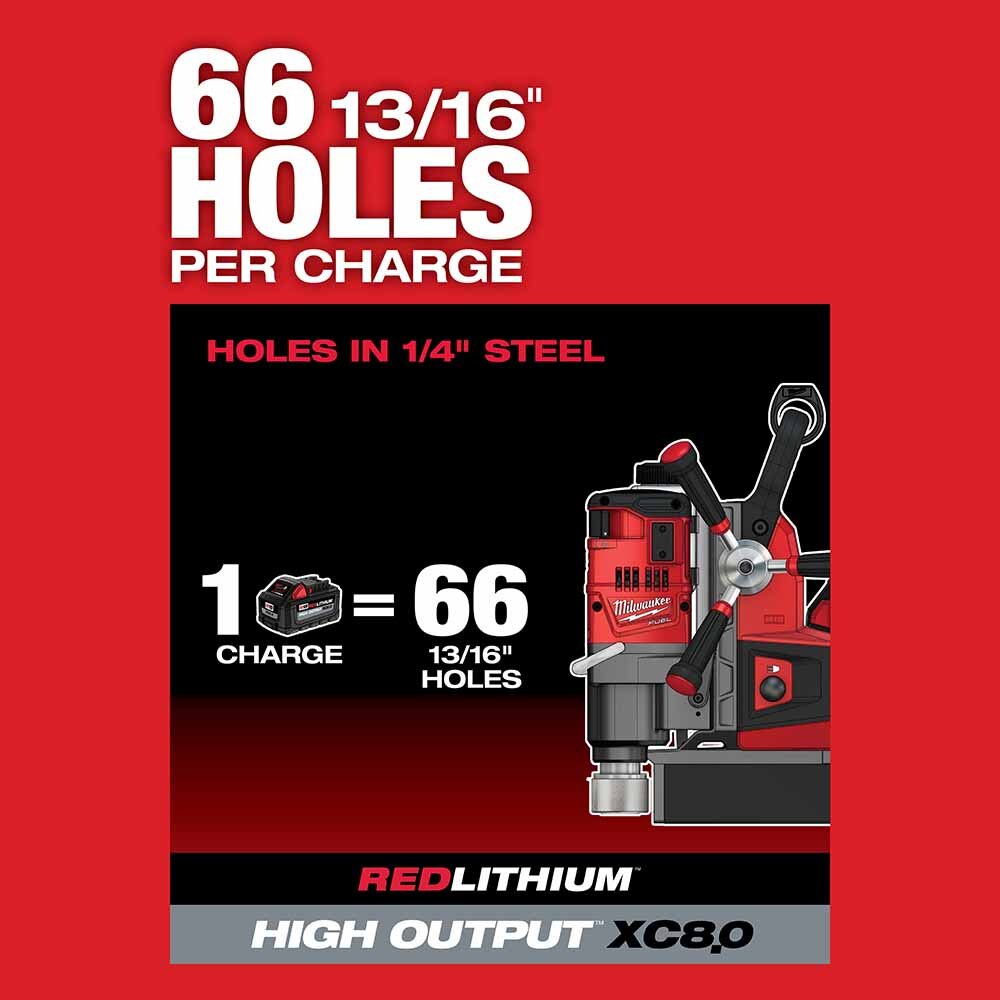

The M18 FUEL™ 1-1/2 in. magnetic drill drills faster than the number one corded competitor, delivers the strongest magnetic hold on 1/4 in. steel providing a safer drilling environment in this material, and drills over (66) 13/16 in. holes per charge. By utilizing permanent magnets, the magnetic base operates without electricity; ensuring that the magnet does not deactivate if the battery is drained. Equipped with AutoStop™ lift-off detection, power to the motor is automatically cut if excess rotational motion is detected while drilling. Powered by a MILWAUKEE® POWERSTATE™ brushless motor, both drills are faster than their corded counterparts, and deliver the same 1-1/2 in. annular cutter capacity. REDLINK PLUS™ intelligence is the most advanced electronic system on the market, preventing damage to the tool and battery caused by overloading or overheating. The M18™ REDLITHIUM™ HIGH OUTPUT™ XC8.0 battery pack provides 50% more power and runs 50% cooler vs REDLITHIUM™ XC batteries. It maintains full power and runs substantially cooler through heavy applications, allowing users to push their cordless tools harder and longer than ever before. The M18™ REDLITHIUM™ HIGH OUTPUT™ XC8.0 battery is fully compatible with 200+ M18™ tools.

Customer Reviews

Based on 2 reviews
Very good tool with one issue

This is a great tool. very handy and has plenty of power. The only issue is the dovetail on the gearbox case for the adjustment cracks. I have gone thru 5+ of these with the same failure every time. Milwaukee repairs them and if they were to make the case stronger it would be perfect.

Best Mag drill on the market.

I use this drill several times a week drilling 5/8 holes in heavy wall pipe. The pipe mounting they sell extra is the best I’ve seen it’s simple and works on all size of pipes I use it on pipe ranging from 12”-48”. The drill itself is easily handled but when it’s in the case it’s heavy
