Description

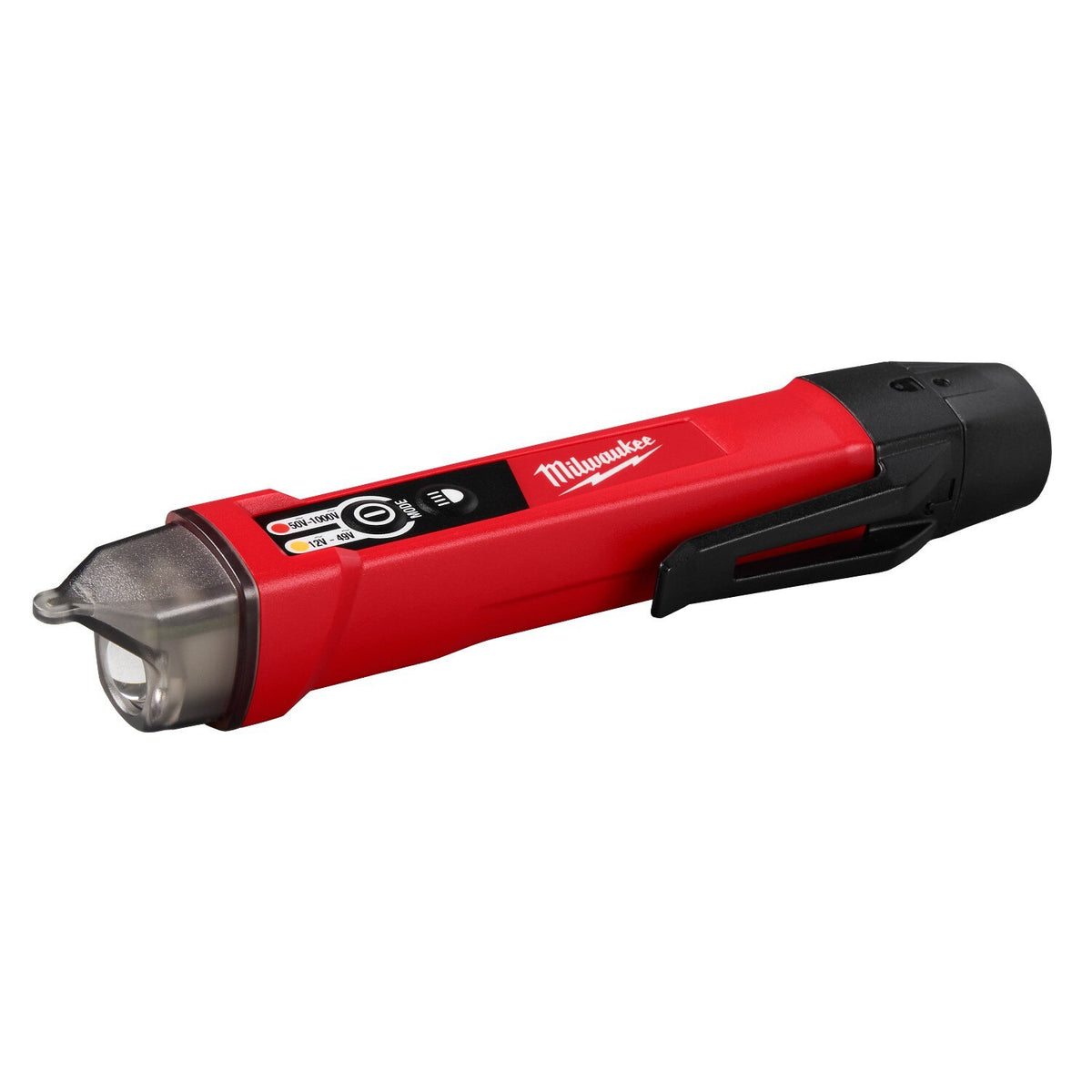

Milwaukee 3203-20 Description

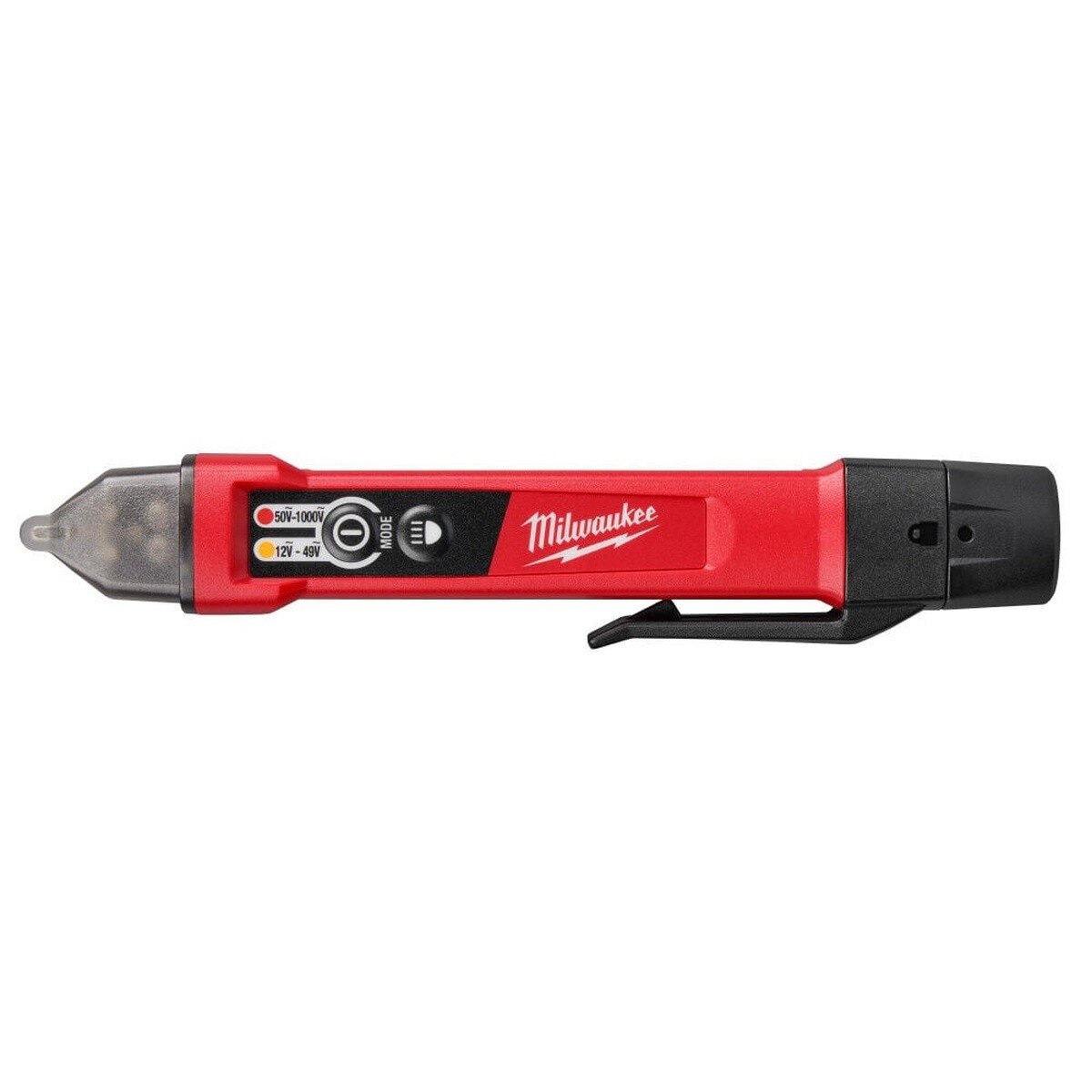

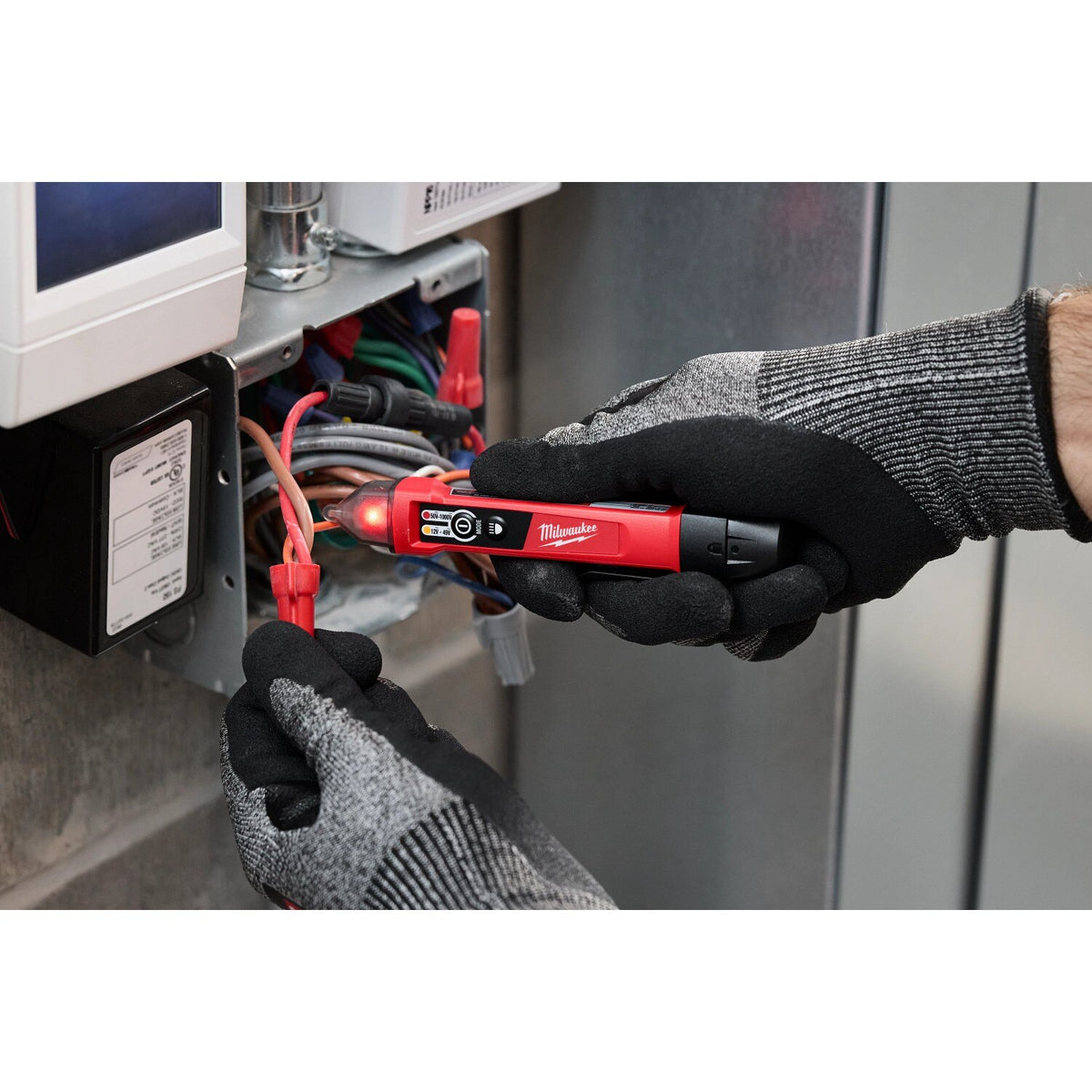

The Milwaukee Dual Range Non-Contact Voltage Detector w/ LED is designed to identify voltage anywhere live electricity is present and features a bright, independently operable work light. The expanded sensitivity range offers the ability to detect voltage in common systems that would normally go undetected when using a standard voltage detector. The Dual Range Voltage Detector detects and automatically differentiates low voltage (12-49V) from higher voltage (50-1000V) when in low voltage detection mode. It provides a yellow indicator when low voltage is detected and a red indicator when high voltage is detected. Voltage is detected between 50V and 1000V and carries an industry-leading safety rating of CAT IV 1000V.

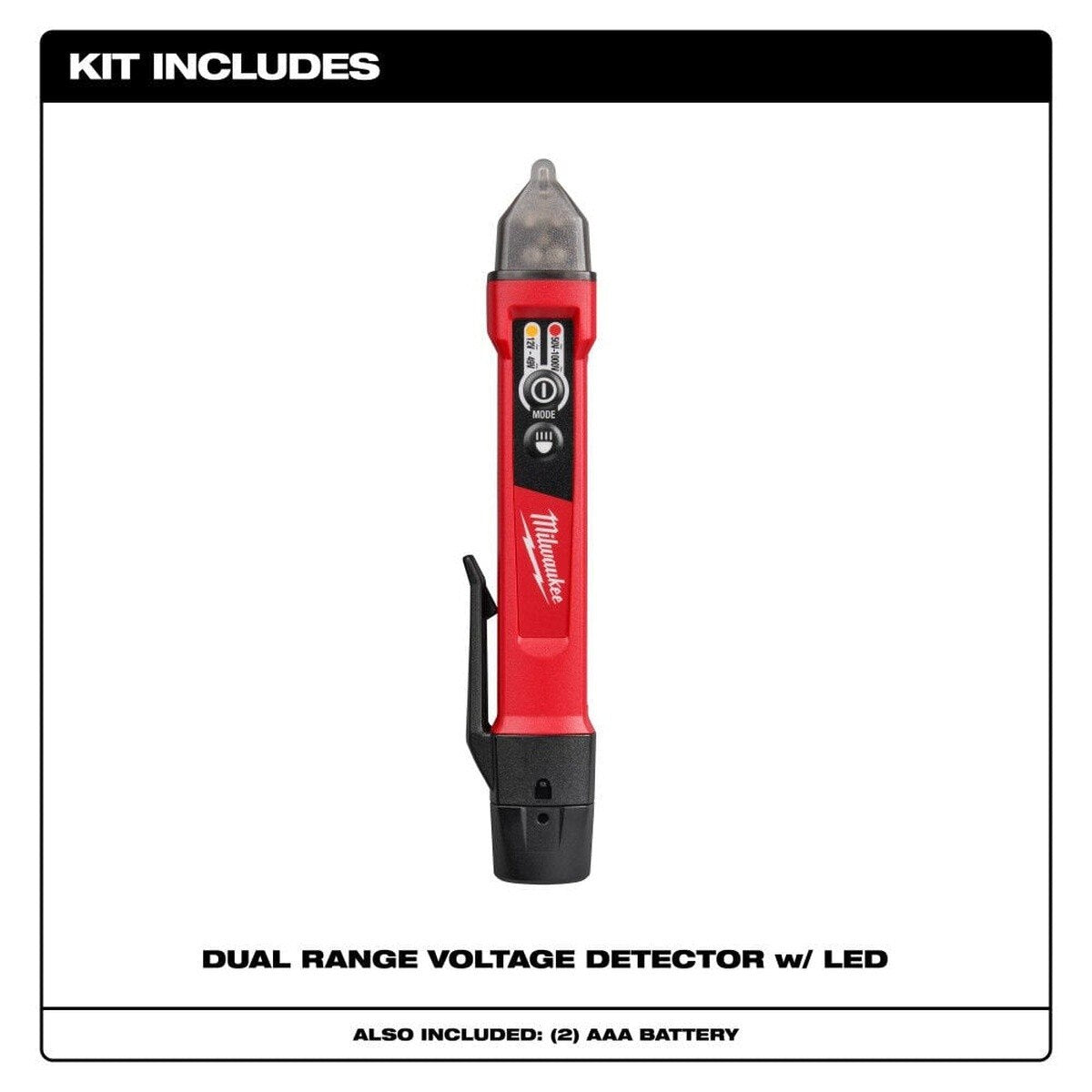

Milwaukee 3203-20 Includes
- (1) Dual Range Voltage Detector w/ LED
- (2) AAA Batteries

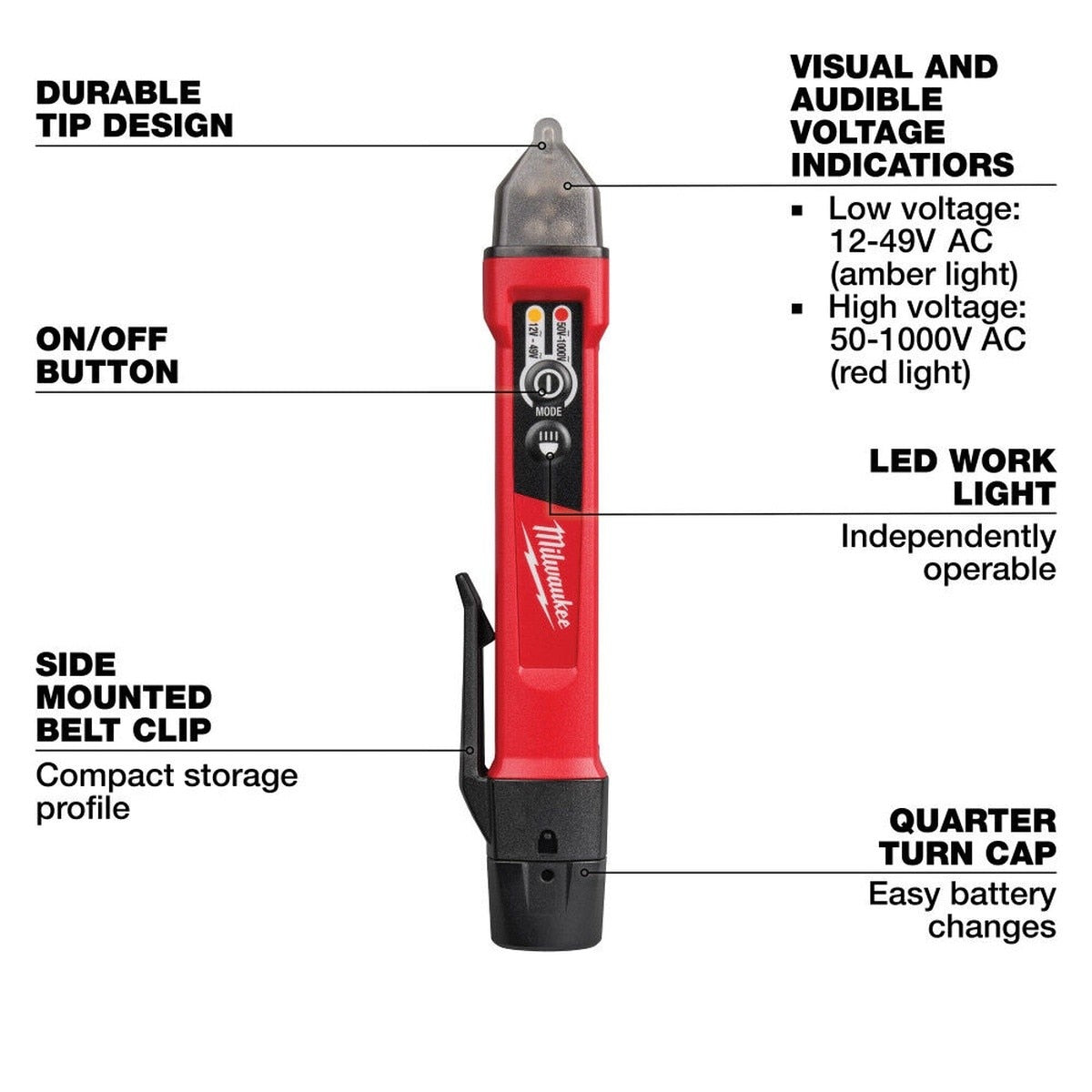

Milwaukee 3203-20 Features
- Lower Voltage Range: 12V - 49V AC
- Higher Voltage Range: 50V - 1000V AC

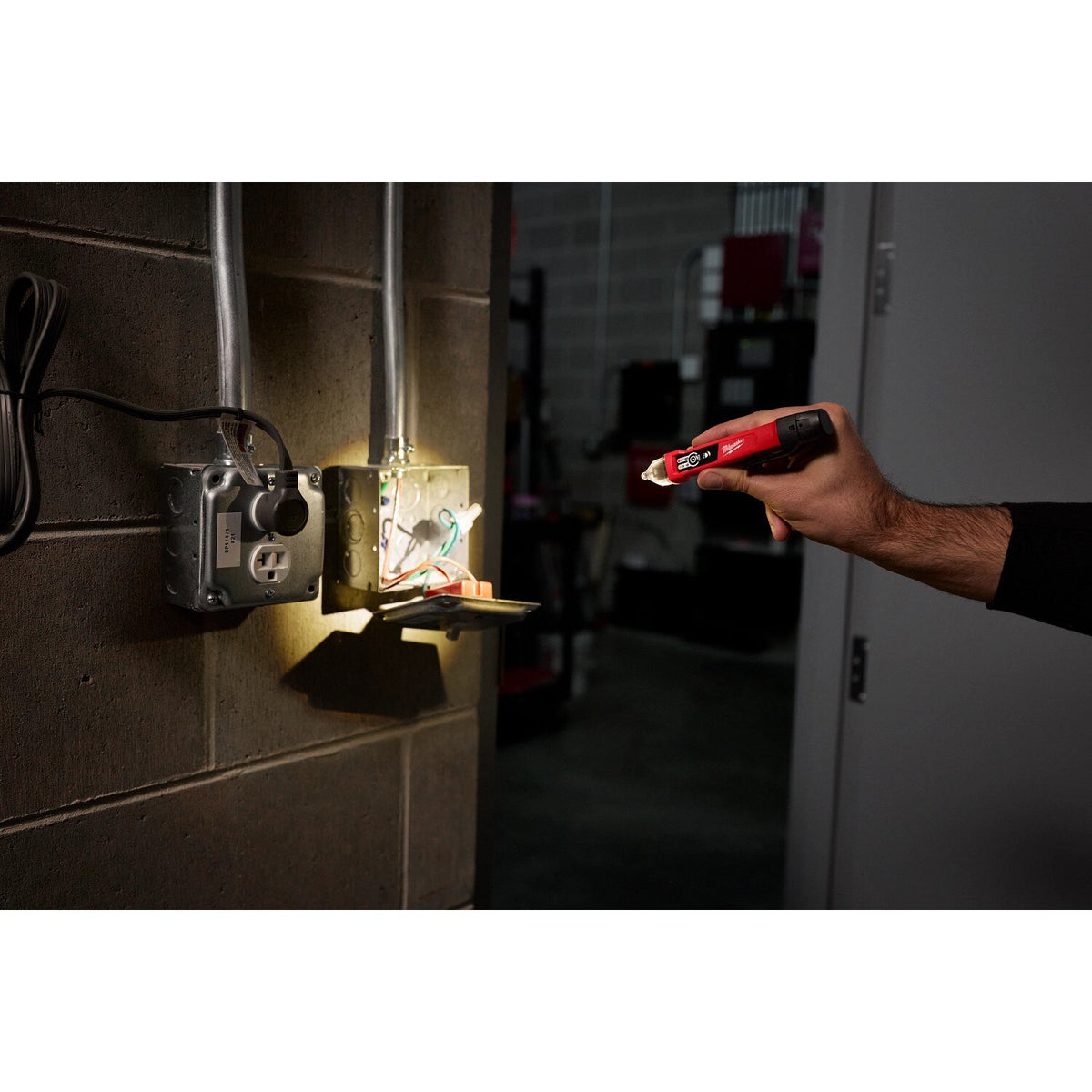

- Independently Operable LED Work Light illuminates the work area without activating voltage detection mode
- Reinforced Tip Design for increased durability in demanding jobsite conditions

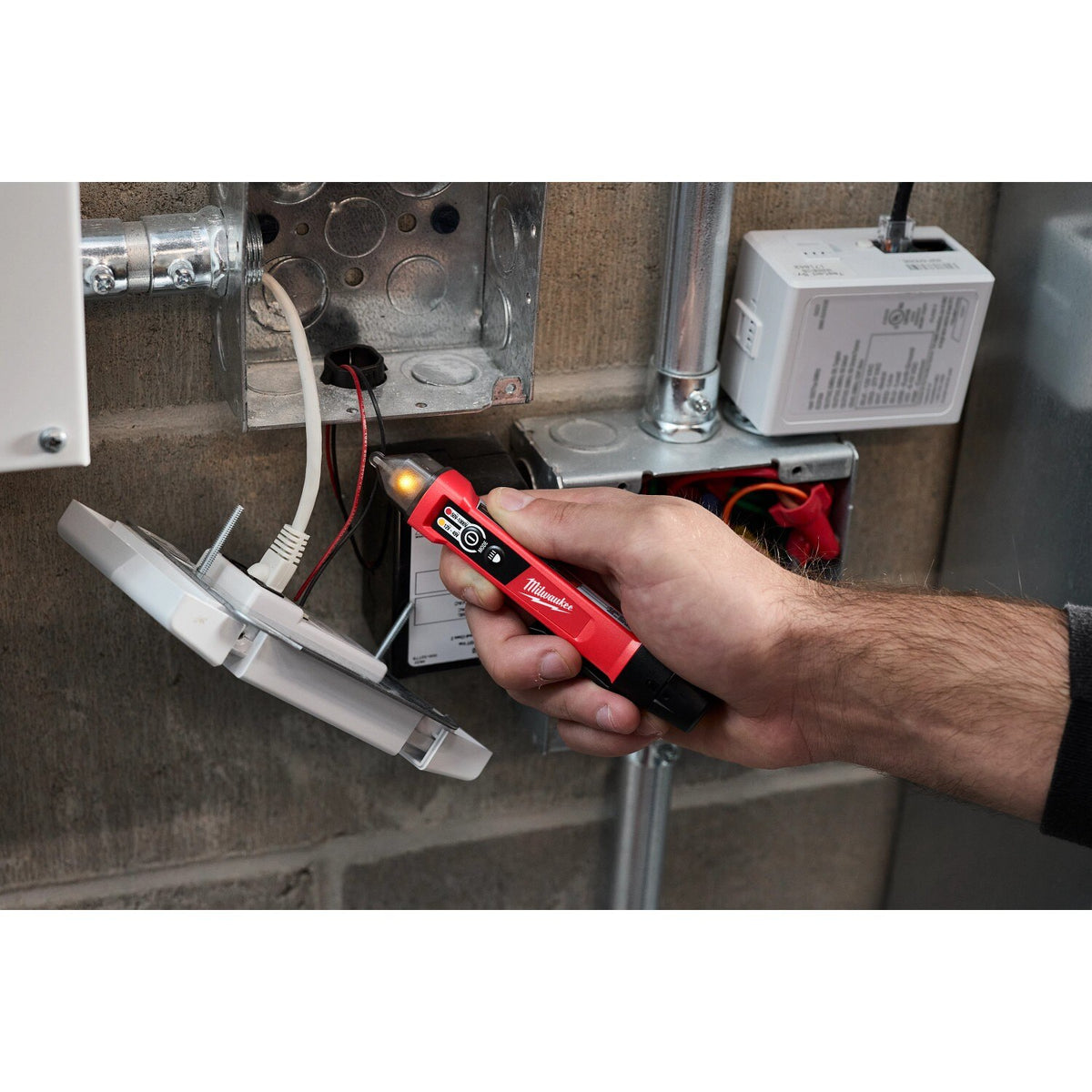

- Visual and Audible Voltage Indicators: amber light for low voltage (12-49V AC) and red light for high voltage (50-1000V AC)

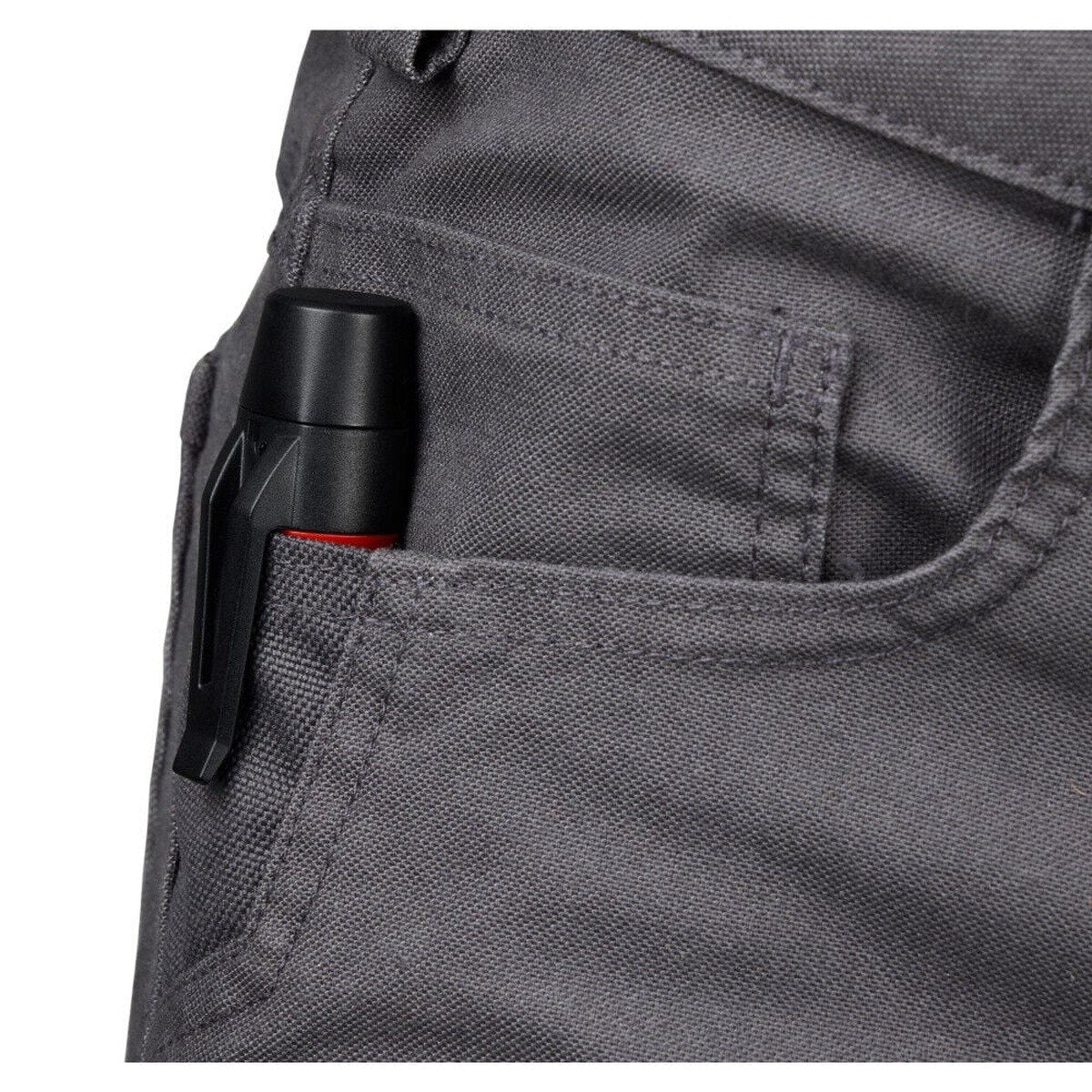

- Side Mounted Durable Belt Clip provides a compact storage profile for easy carrying

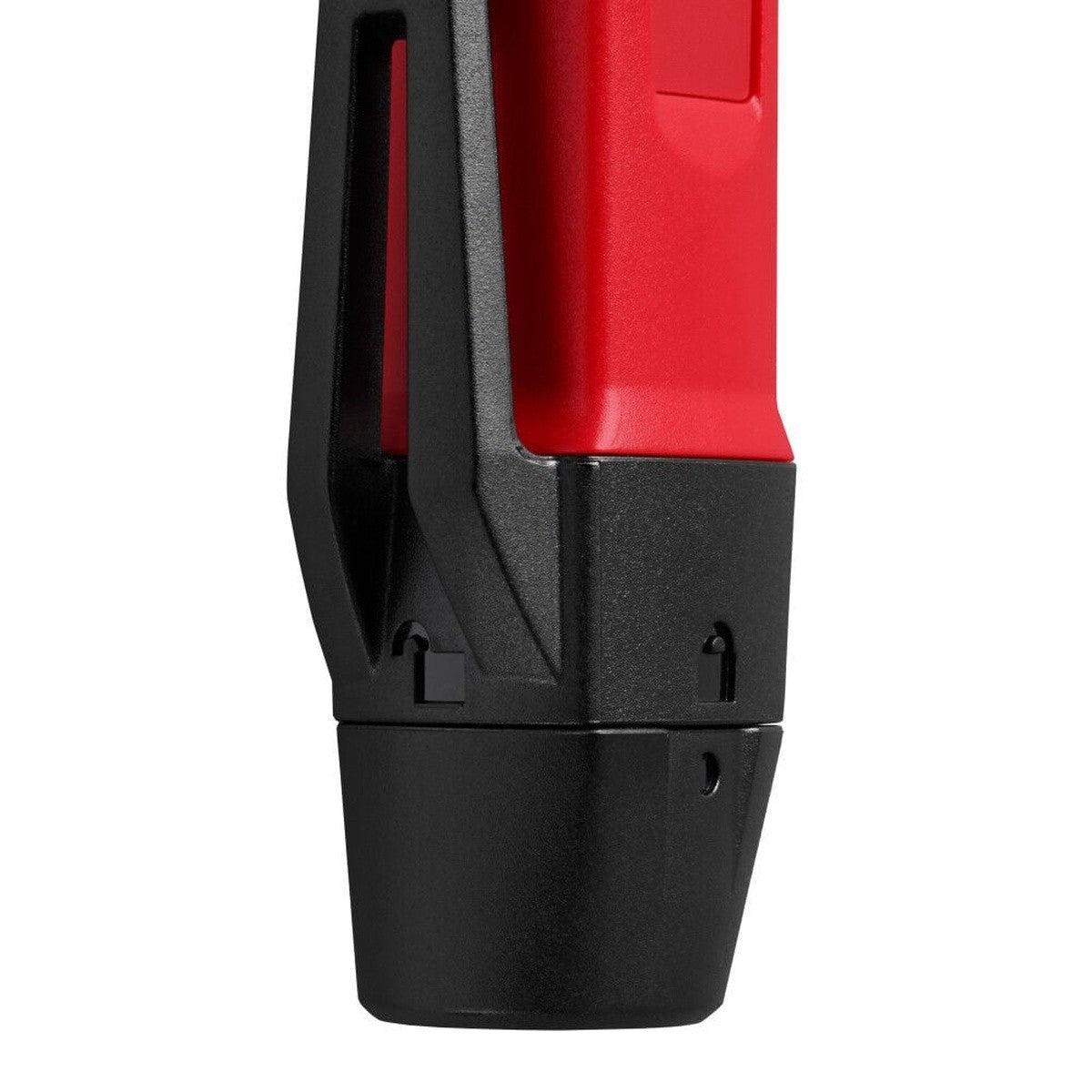

- Quarter Turn Cap for quick and easy battery replacement
- CAT IV 1000V Safety Rating for use in the most demanding electrical environments
- IP54 rated for water and dust protection
- Powered by (2) AAA Batteries
- 2-Year Warranty
Milwaukee 3203-20 Specifications
| Warranty | 2 Year Limited Warranty |
| Material | Plastic |
| Safety Rating | CAT IV 1000V |
| IP Rating | IP54 |
| Low Voltage Range | 12V - 49V AC |
| High Voltage Range | 50V - 1000V AC |
| Battery | (2) AAA |
| Product Width (in) | 3.74 |
| Product Height (in) | 9.05 |
| Product Length (in) | 1.77 |
| Shipping Weight (lbs) | 0.22 |
