Milwaukee 3642-21 Description
The Milwaukee M12 Green 360 3-Plane Laser Kit provides automatic alignment up to 125 ft and 70% brighter green lines in boosted mode for faster, more accurate layout. Powered by an M12 REDLITHIUM XC4.0 battery for long runtime, the kit includes a receiver for auto alignment, charger, clamp and a durable carrying case.

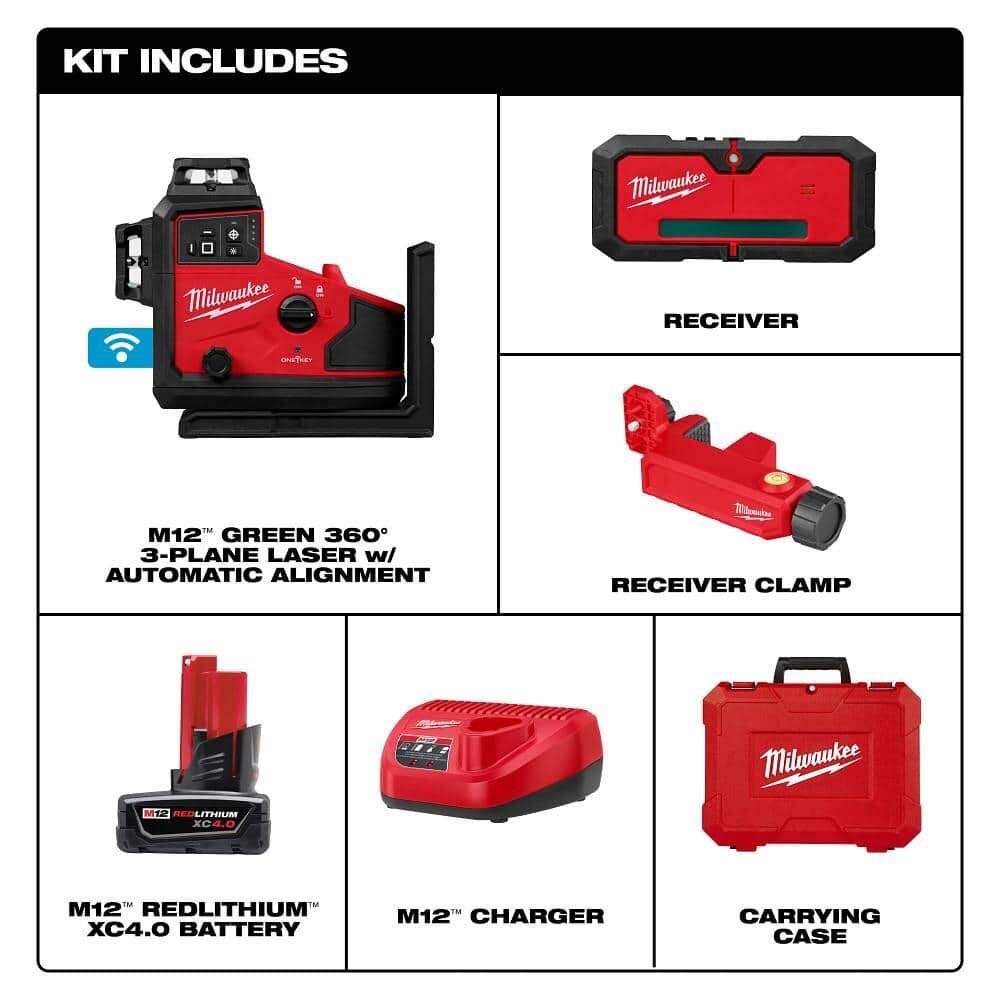

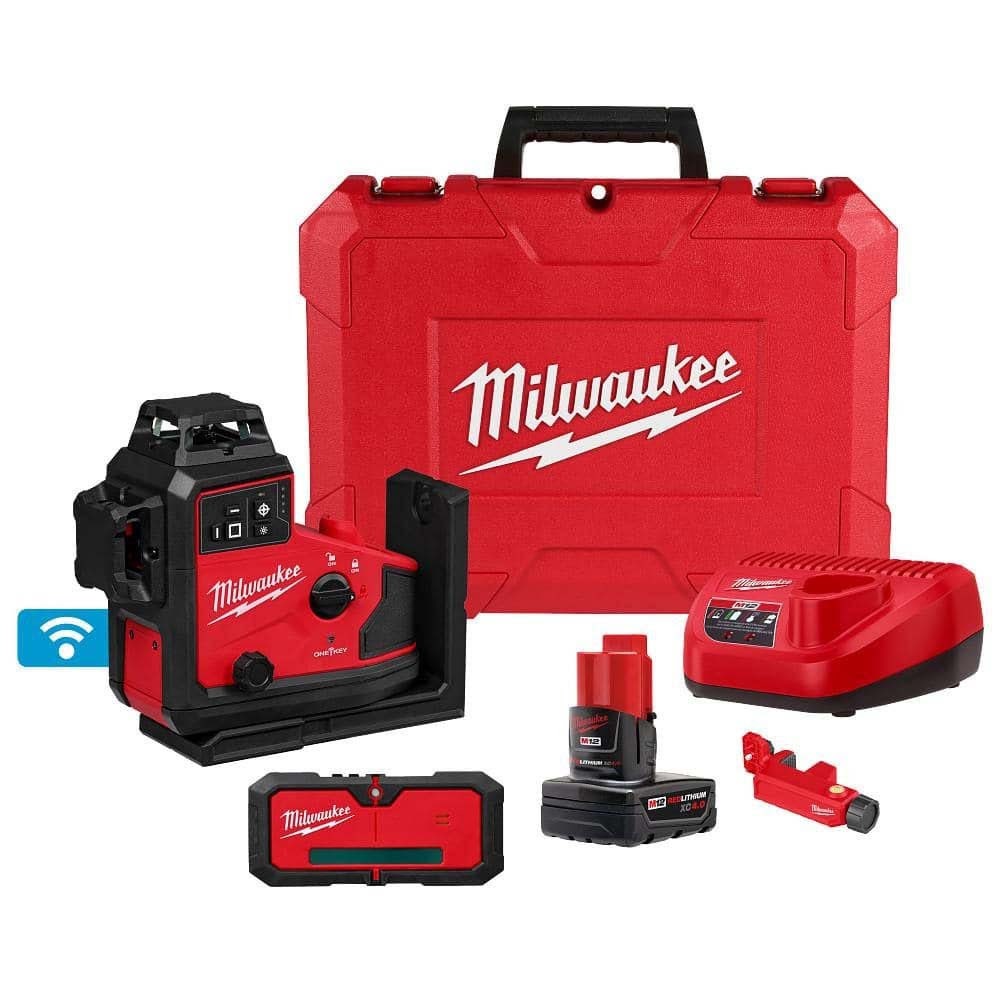

Milwaukee 3642-21 Includes
- (1) M12 Green 360 3-Plane Laser with Automatic Alignment

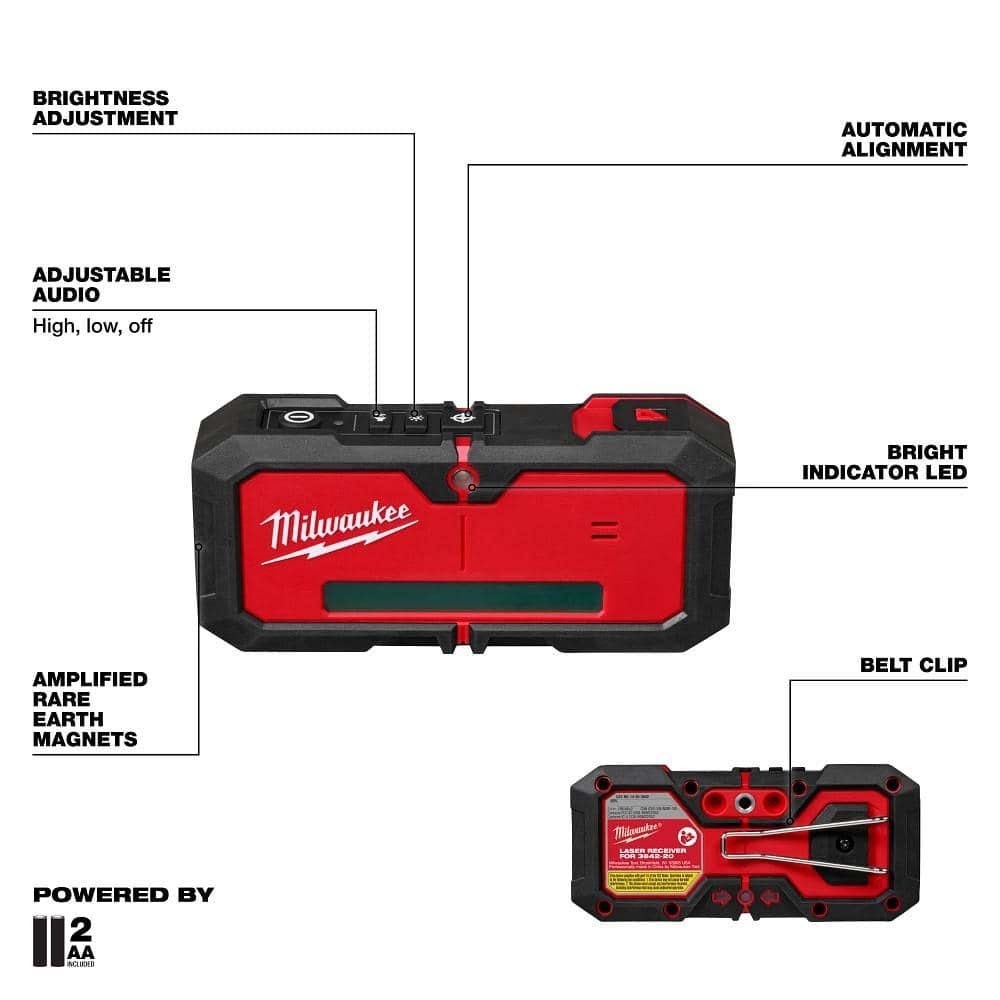

- (1) Laser Receiver
- (1) Receiver Clamp
- (1) M12 REDLITHIUM XC4.0 Battery
- (1) M12 Charger
- (2) AA Batteries
- (1) Carrying Case

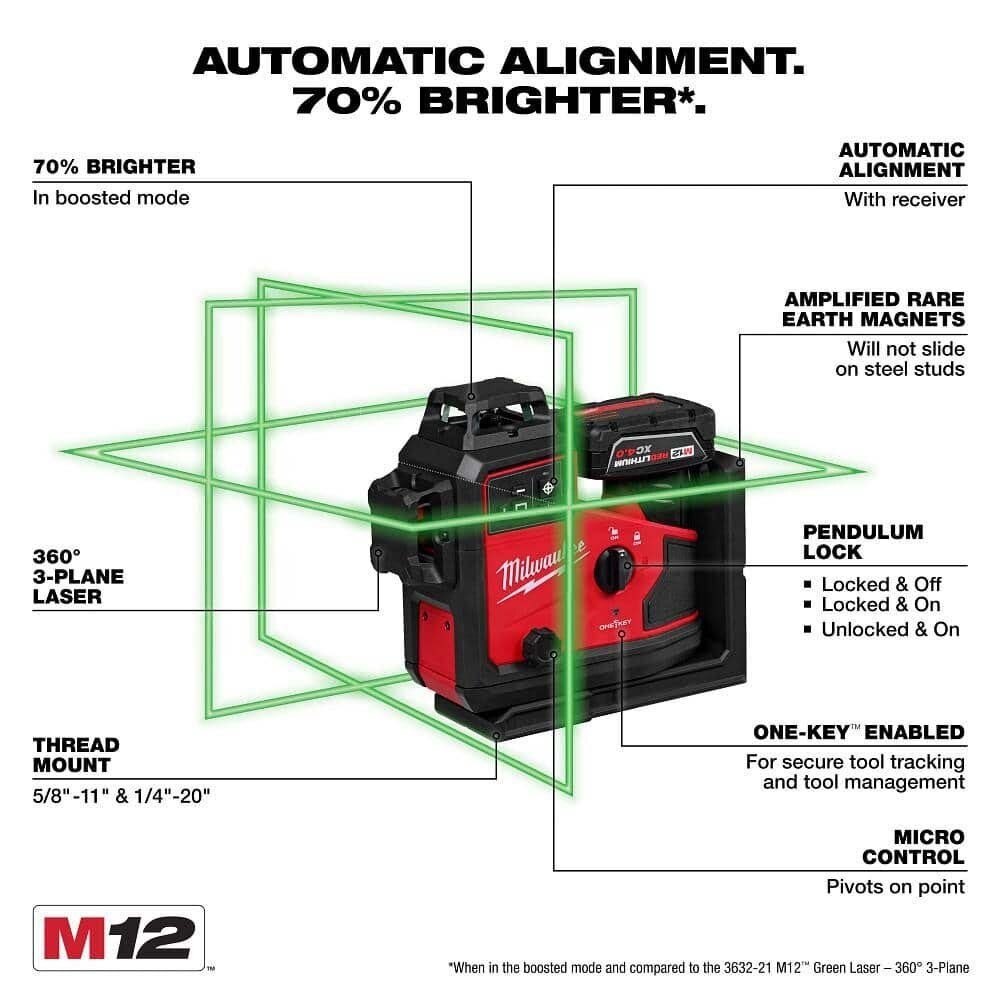

Milwaukee 3642-21 Features
- Automatic Alignment up to 125 ft with included receiver
- 70% brighter lines in boosted mode
- 10+ hours of runtime on standard brightness with XC4.0 battery
- Three 360-degree planes: 1 horizontal and 2 vertical
- Accuracy: +/- 1/8 in at 33 ft; Auto-alignment accuracy +/- 1/8 in at 125 ft
- Amplified rare earth magnets won’t slide on steel studs
- Self-leveling +/- 4 Degree tilt with pendulum lock
- IP54 water and dust resistance; 1 m impact rated
- ONE-KEY tracking and tool management
- 1/4-20 and 5/8-11 thread mounts
Milwaukee 3642-21 Specifications
| Laser Color | Green |
| Working Range | 125 ft (165 ft with detector) |
| Number of Planes | 3 (360-degree) |
| Measurement Accuracy | +/- 1/8 in at 33 ft |
| Automatic Alignment Accuracy | +/- 1/8 in at 125 ft |
| Self-Leveling Range | +/- 4 Degree tilt |
| Ingress Protection | IP54 |
| Mount Threads | 1/4-20 and 5/8-11 |
| Product Dimensions (L x W x H) | 8.40 in x 4.60 in x 7.39 in |
| Battery System | M12 REDLITHIUM 12-Volt |
| Warranty | 3 Years |
