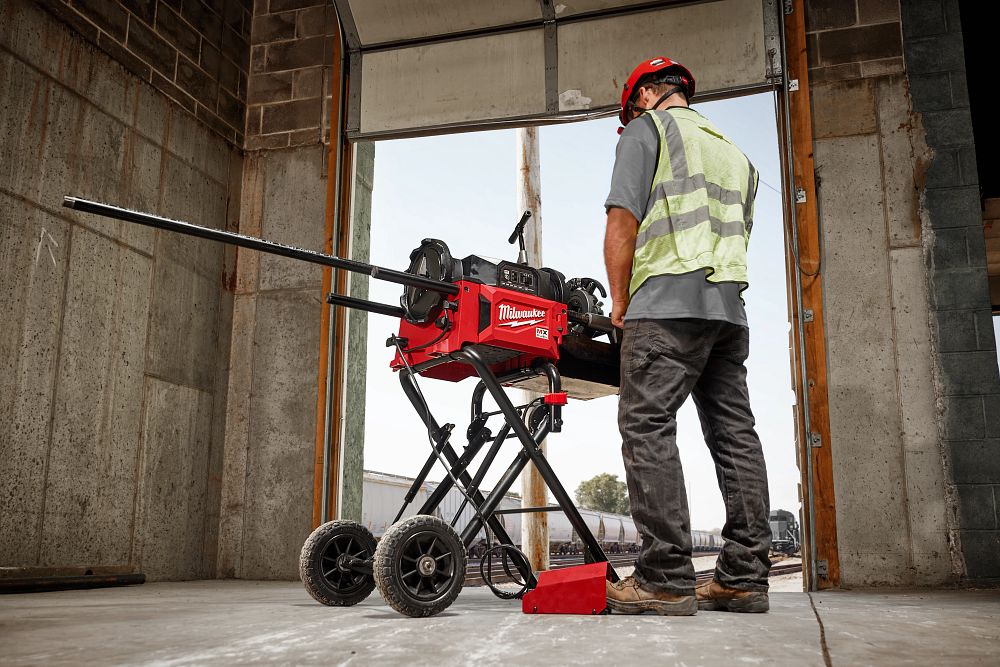

Milwaukee MXF512-2XC Pipe Threader: Cut, Ream, and Thread Without a Cord

If you've spent any time running pipe on a commercial job, you know the pain of dragging a corded threading machine from one end of a building to the other. You're hunting for an outlet, running extension cords across the floor, or threading pipe in one spot and carrying it to where it actually needs to go. It's slow, it's frustrating, and it adds up to a lot of wasted time over the course of a project.

Milwaukee's product team talked about when they developed the MXF512-2XC and the research that went into it, saying, "Through our relentless user research, we found clear inefficiencies and significant opportunities to improve job site workflow on jobs requiring large amounts of threading," said John Karl Jarzombek, Product Manager at Milwaukee Tool. "Historically, corded machines have forced operators to setup and stay near a power source, wasting time walking back and forth on the job site."

That research led directly to the MX FUEL Pipe Threading Machine, making it the industry's first cordless pipe threading machine, designed from the ground up to move with you on the job rather than tie you to a power source such as an outlet or generator.

Let's break down what's in the kit, how the machine performs, and whether it's the right fit for your work.

Before getting into how it works, here's what Milwaukee includes in the box:

• (1) MX FUEL Pipe Threading Machine
• (2) MX FUEL REDLITHIUM XC406 Battery Packs
• (1) MX FUEL Battery Charger
• (1) Gallon Milwaukee Dark Thread Cutting Oil
• (1) 1/2" to 3/4" High Speed NPT Universal Pipe Threading Die Set
• (1) 1" to 2" High Speed NPT Universal Pipe Threading Die Set

You're getting two die sets that cover the full 1/8" to 2" pipe capacity range, which means you don't have to go back to the supplier before your first day of threading. The gallon of Milwaukee's own dark thread cutting oil is also included, so you're set up and ready to run right out of the box.

The MXF512-2XC is built around one core idea: take a tool that's always been tethered to an outlet and cut the cord entirely. Milwaukee's MX FUEL platform is its heavy equipment battery system, separate from the M18 and M12 lines. It's designed for tools that need serious power and runtime, and a pipe threading machine is exactly that kind of tool.

The machine runs on MX FUEL REDLITHIUM XC406 battery packs, delivering up to 140 cuts, reams, and threads on 3/4" pipe per charge. That's a full day of threading work without stopping to find power. You can thread black iron, stainless steel, galvanized steel, rigid metal conduit (RMC), and PVC coated pipe up to 2" in diameter.

The whole unit rides on a spring-assisted cart, making it much easier to move around the jobsite than wrestling with a traditional wheeled stand. At 240 pounds, it's not light, but the cart design is built to handle the load without putting your back through the floor.

One of the more practical features is the self-contained oil reservoir. On a standard threading machine, you're dealing with oil drips and spills whenever you move the machine. The MXF512-2XC keeps the oil contained, so you can transport and reposition the machine without draining it first and without leaving an oil trail across your floor. When the job's done, the machine stores vertically upright without spilling, which also cuts down on how much floor space it needs in the shop or truck.

The biggest selling point here is obvious: no cord. But it goes beyond just cutting the extension cord. Being cordless means you can thread pipe at the point of installation rather than back at a central threading station. On a large commercial job, that alone can save hours over the course of a project. You're not walking pipe back and forth, and you're not setting up a threading area in a spot that's convenient for the outlet instead of convenient for the work.

Jarzombek summed up what Milwaukee's own customers told them in an interview done by Mechanical Hub: "The durable job site cart makes it easier than ever to thread at each point of install or remote areas of the job site, and having a self-contained oil reservoir eliminates the need to move messy bucket oilers separate from the machine. All of these innovations ultimately provide operators increased efficiency and the most productive onsite threading experience."

The POWERSTATE brushless motor is what makes this possible without sacrificing performance. Brushless motors run more efficiently, generate less heat, and last longer than brushed motors.

Combined with the REDLINK PLUS intelligence system, the machine actively communicates between the battery and the tool to optimize performance and protect both from overload, overheating, and over-discharge. You're not losing power as the battery drops, and the system helps protect your investment over the long haul.

If your work includes both threading and roll grooving, this feature is worth paying attention to. The MXF512-2XC has a second rear hammer chuck that connects to most roll grooving attachments without any teardown or extra adapters.

On a standard setup, switching from threading to grooving means breaking down the threading configuration, setting up for grooving, doing the work, and then reversing the whole process. On a job where you're doing a mix of both, that changeover time adds up fast. The rear chuck on this machine is designed to let you make that transition faster, keeping the job moving and reducing downtime between tasks.

Thread quality matters. A bad thread means a leak, and a leak on a pressurized system means callbacks, rework, and unhappy customers. The Milwaukee NPT Pipe Threading Die Head with Micro-Adjust gives you precise control over die adjustment, which directly affects the quality and consistency of your threads.

The die head automatically releases after each thread, which is standard on good threading equipment. What sets the Micro-Adjust apart is the adjustment knob that lets you dial in your die position with fine control rather than coarse jumps. Over the course of a long job where you're cutting hundreds of threads, consistent die adjustment means consistent thread quality from the first piece to the last.

The die head is compatible with both the included 1/2" to 3/4" and 1" to 2" NPT die sets, and the system also works with BSPT die heads for jobs that require British Standard Pipe Taper threading.

Thread cutting oil is a necessary part of the job, but managing it on a mobile machine is a real pain. Traditional machines require you to drain the oil before you move them, and they're not exactly tidy even when you do.

The MXF512-2XC has a self-contained oil reservoir that handles oiling automatically and keeps the fluid contained during transport. You don't need to drain before moving, the machine self-oils during operation, and it stores upright without spilling. That keeps your truck cleaner, your floors cleaner, and the whole process faster from setup to cleanup.

Milwaukee includes a gallon of their own dark thread cutting oil in the kit, which is the recommended fluid for this machine.

ONE-KEY is Milwaukee's connected tool platform, and it's built into the MXF512-2XC. Through the ONE-KEY app on your smartphone, you can track the machine's location, manage it in your tool inventory, and lock it out remotely if it gets stolen or goes missing.

At 240 pounds and the price point of a commercial piece of equipment, the MXF512-2XC is exactly the kind of asset you want to be able to track. ONE-KEY lets you keep tabs on where it is across multiple job sites, assign it to specific projects, and lock it out so it can't be used if it leaves the site without authorization.

The MXF512-2XC is compatible with a range of Milwaukee accessories that expand what you can do with it. Some of the most commonly used additions include:

• 1/2" to 3/4" High Speed NPT Universal Pipe Threading Dies -- Included in the kit; replacement sets available when dies wear down.
• 1" to 2" High Speed NPT Universal Pipe Threading Dies -- Also included in the kit and available as replacements.
• Milwaukee Dark Thread Cutting Oil -- The recommended cutting oil for this machine, included as a gallon in the kit.
• NPT Pipe Threading Die Head with Micro-Adjust -- The standard die head for NPT threading, included with the machine.
• BSPT Pipe Threading Die Head with Micro-Adjust -- For jobs requiring British Standard Pipe Taper threads instead of NPT.
• Threading Jaw Inserts for Coated Pipe -- Designed for PVC-coated pipe to prevent coating damage during threading.

•  Are a plumber, pipefitter, or mechanical contractor who regularly threads pipe on commercial or industrial jobs. If threading is a core part of your daily work across large job sites, the cordless freedom here is going to change how you operate.
• Run crews on jobs where multiple workers are threading pipe in different areas of a building at the same time. Being able to position the machine at the point of installation makes multi-area jobs significantly more efficient.
• Do both threading and grooving work. The rear hammer chuck and seamless transition between threading and grooving modes saves real time on jobs that require both.
• Work in areas where running cords isn't practical or safe. Tight mechanical rooms, areas with wet floors, or locations far from power access are all situations where the MXF512-2XC opens up options a corded machine can't match.
• Want to track and manage your equipment. ONE-KEY integration makes the MXF512-2XC easy to manage across multiple job sites and provides a layer of security on a high-value piece of equipment.

The Milwaukee MXF512-2XC MX FUEL Pipe Threading Machine Kit is built to solve a real problem that pipefitters and plumbers have dealt with for a long time. Cordless operation at the capacity and power level needed for serious commercial threading work is a genuine step forward, and Milwaukee built the rest of the machine to match.

The spring-assisted cart, self-contained oil system, dual hammer chucks, and Micro-Adjust die head aren't just extras. They're the parts that make the difference between a machine that's technically cordless and one that actually makes your job easier from the moment you roll it off the truck to the moment you load it back up.

The 140 threads per charge runtime on 3/4" pipe is enough to run a full day on most jobs, and the two XC406 battery packs in this kit give you a backup so you're never waiting on a charge mid-job. The all-metal housing, two-year warranty, and Milwaukee's track record on their MX FUEL equipment round out a machine that's built to last on working job sites.

If threading pipe is a regular part of your work and mobility on the job site matters, the MXF512-2XC is worth a serious look.
